Junction Block C6 Connector End View

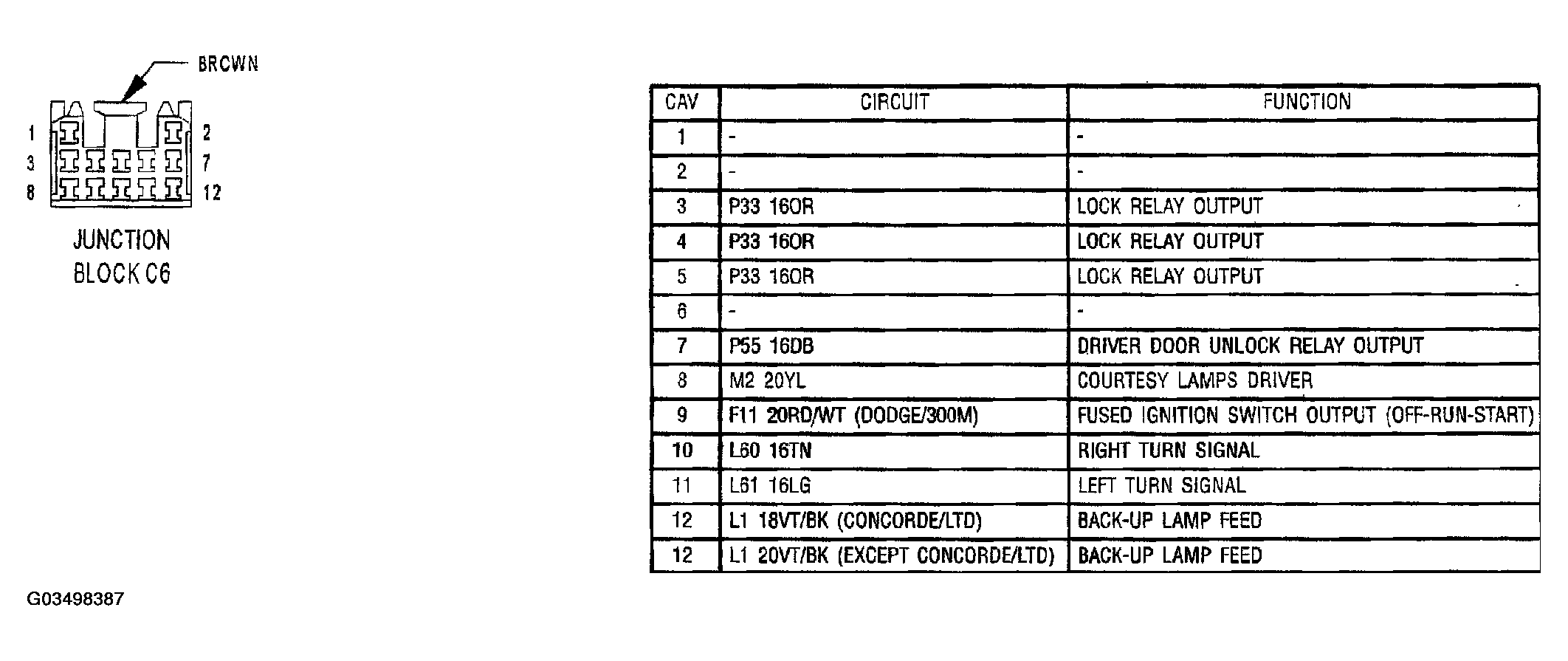

Fig 1: Junction Block Connector End View (C6)

G03498387

Courtesy of DAIMLERCHRYSLER CORP.
