Oil Pressure Switch: Installation
WARNING: This page is about a different variant/trim than selected.
- Apply Mopar(R) Thread Sealant to the switch threads.

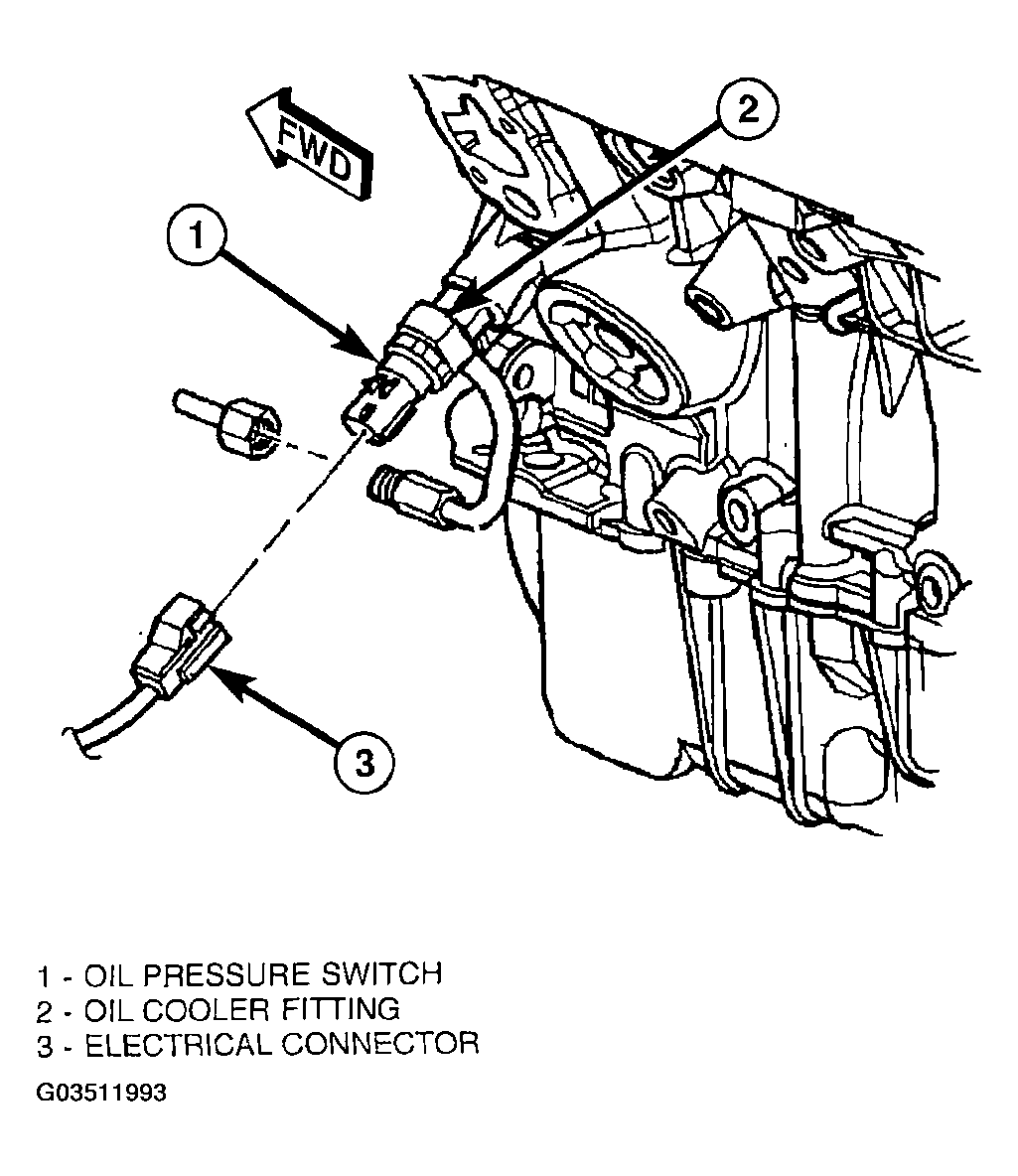

- Install oil pressure switch to fitting (Figure ).
- Hold oil cooler fitting with a wrench and tighten oil pressure switch.
- Connect electrical connector (Figure ).
- Lower vehicle.
- Start engine and check for leaks.
- Check engine oil level and adjust as neccessary.
