Flex Plate: Installation

WARNING: This page is about a different variant/trim than selected.

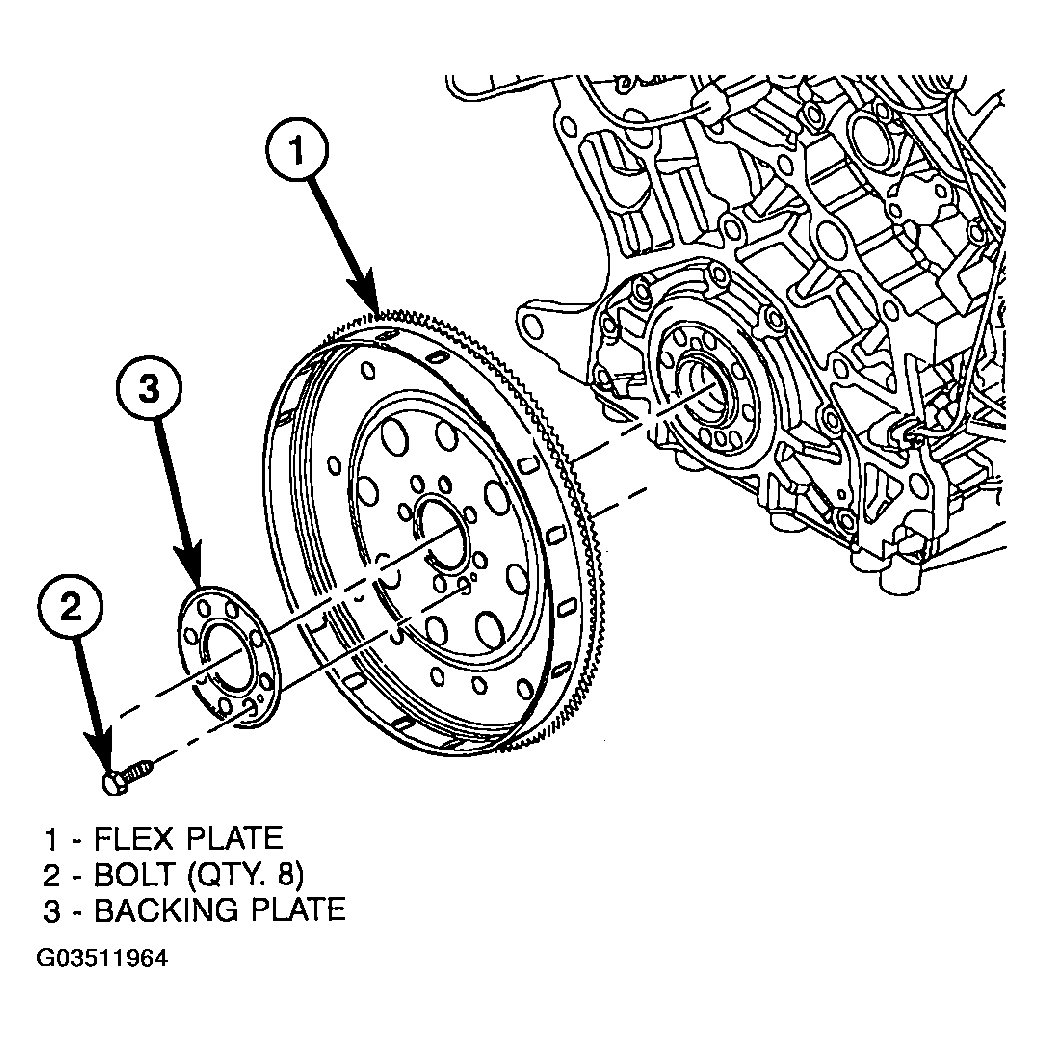

  1. Position flex plate with backing plate on the crankshaft (Figure ).
  2. Apply Mopar(R) Lock & Seal Adhesive to the flex plate bolts.
  3. Install flex plate bolts (Figure ). Tighten bolts to 95 N.m (70 ft. lbs.).
  4. Install the transaxle. (Refer to OVERHAUL - 42LE )
