Engine 3.5L: Description

The 3.5 Liter (214 Cubic Inches) 60 degree V-6 engines is a single overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig 1 ). The engine does not have provisions for a free wheeling valve train.

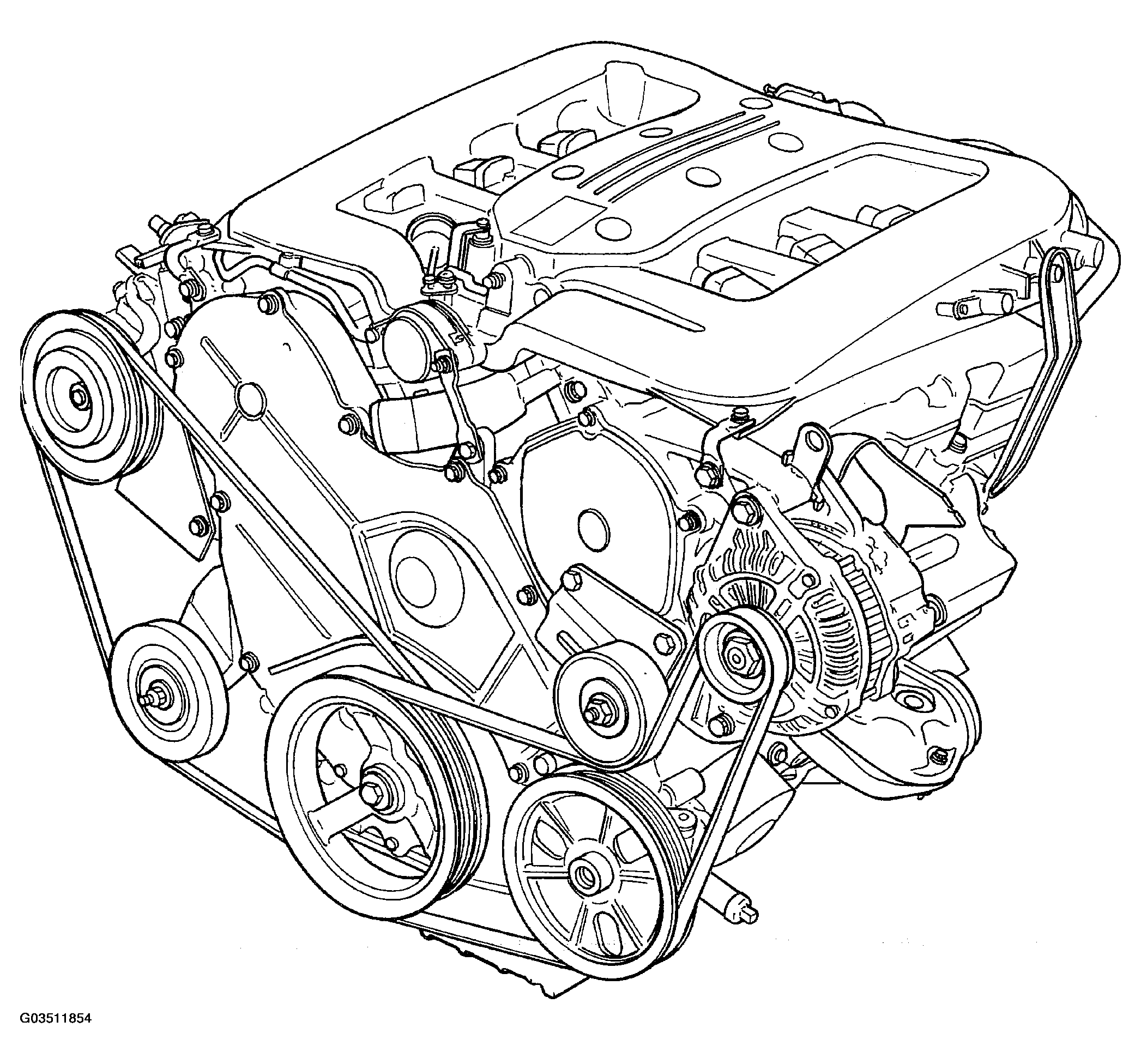

Fig 1: 3.5L Engine

Courtesy of DAIMLERCHRYSLER CORP.

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig 2 ). The firing order is 1-2-3-4-5-6.

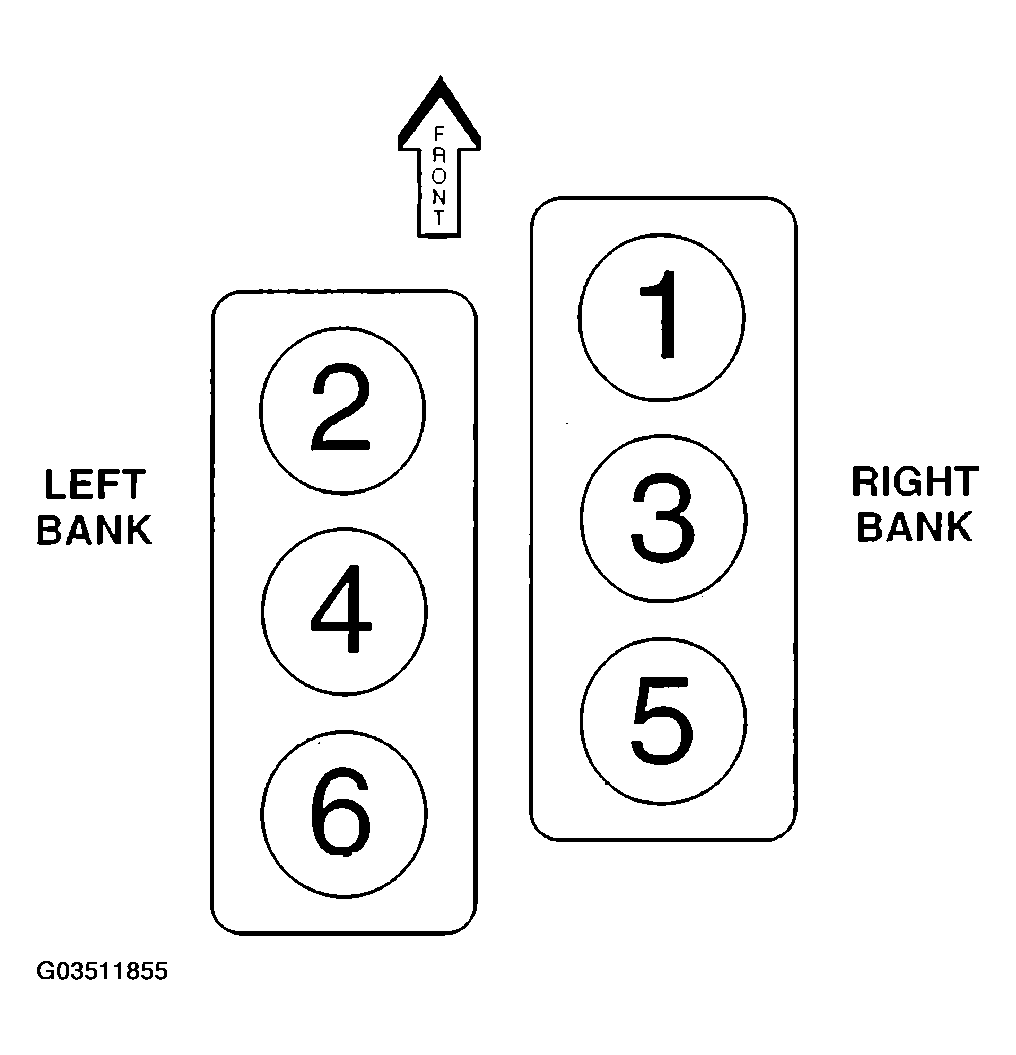

Fig 2: Cylinder Numbering & Firing Order - 3.5L

Courtesy of DAIMLERCHRYSLER CORP.

The engine identification number is located on the rear of engine block just below the cylinder head (Fig 3 ).

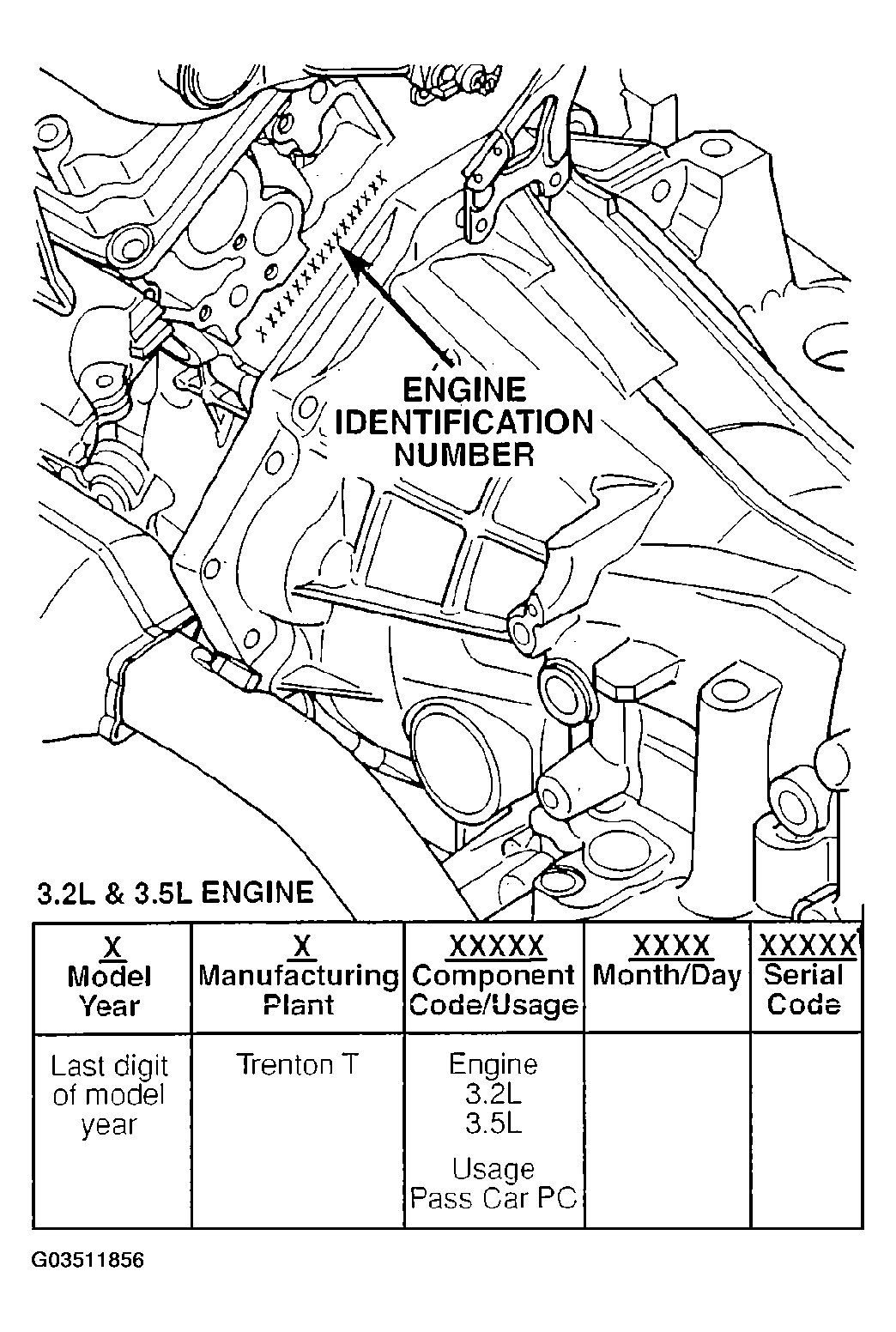

Fig 3: Engine Identification

Courtesy of DAIMLERCHRYSLER CORP.
