Junction Block C3 Connector End View

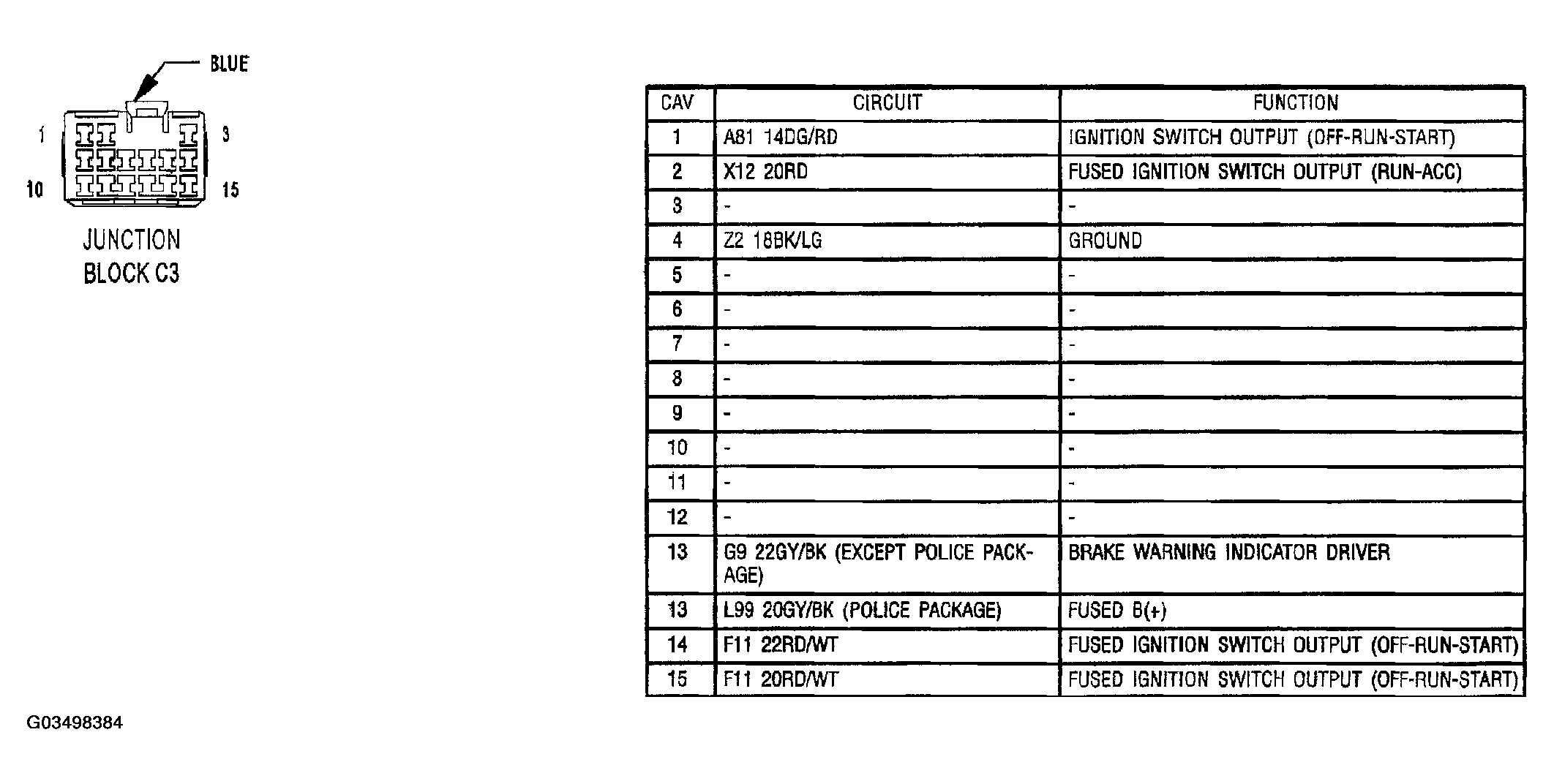

Fig 1: Junction Block Connector End View (C3)

G03498384

Courtesy of DAIMLERCHRYSLER CORP.
