C201 (Body Side) Connector End View

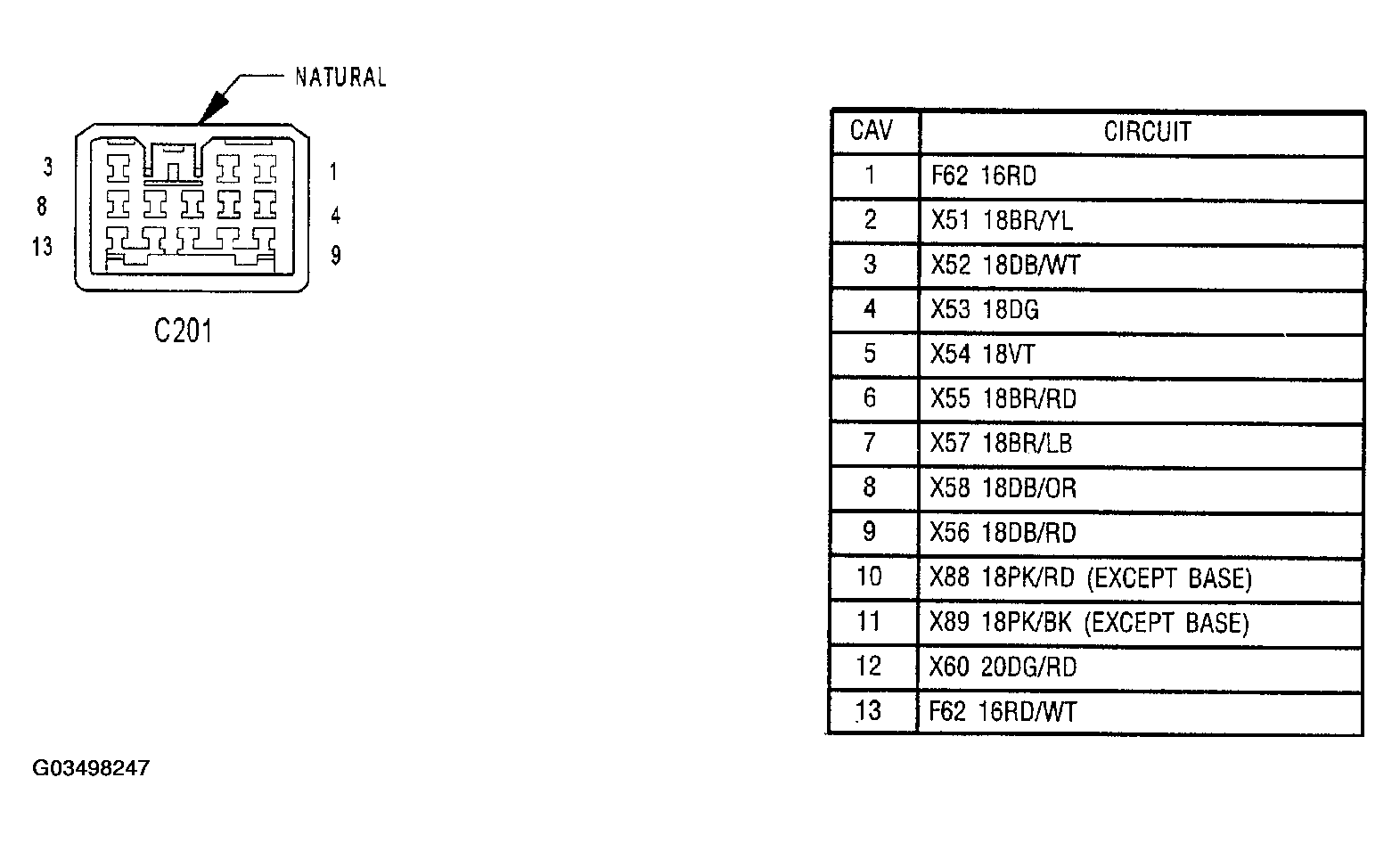

Fig 1: Body Side Inline Connector End View (C201)

G03498247

Courtesy of DAIMLERCHRYSLER CORP.
