Sentry Key Immobilizer Module Connector End View

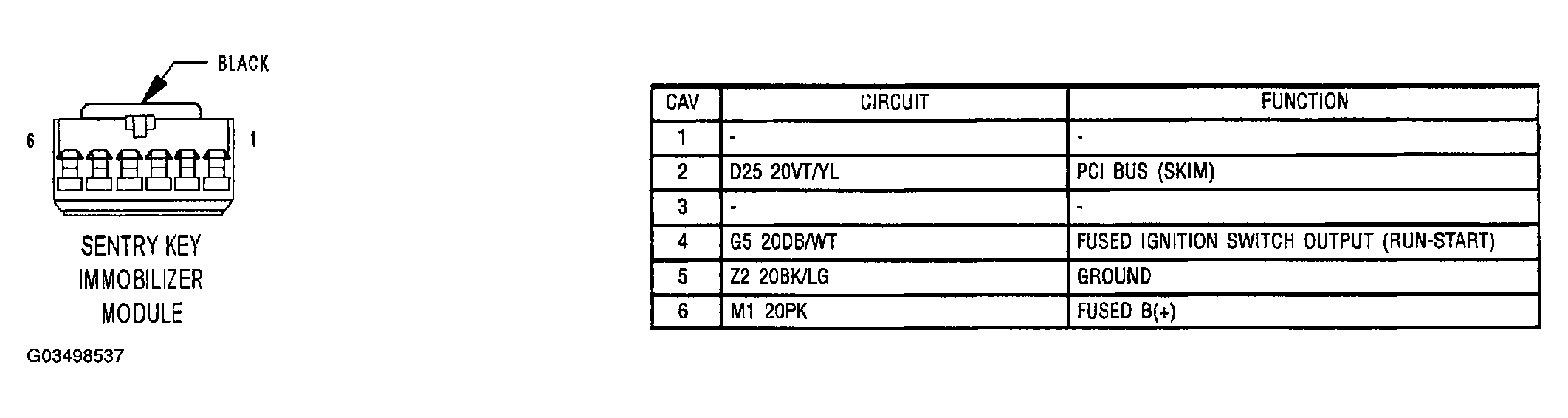

Fig 1: Sentry Key Immobilizer Module Connector End View

G03498537

Courtesy of DAIMLERCHRYSLER CORP.
