Junction Block Body Control Module-JB Connector End View

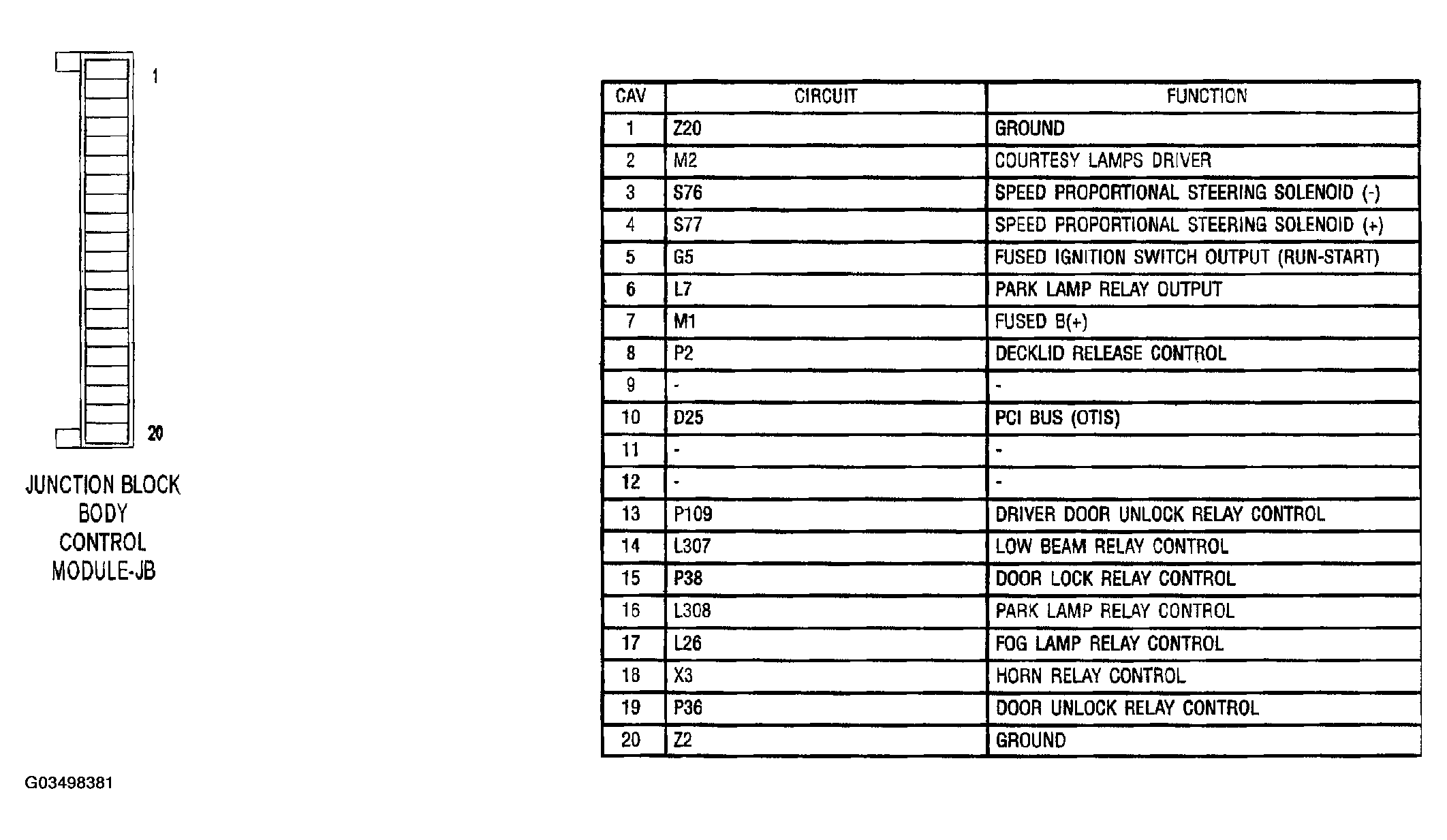

Fig 1: Junction Block Body Control Module Connector End View

G03498381

Courtesy of DAIMLERCHRYSLER CORP.
