DECKLID Release Switch Connector End View

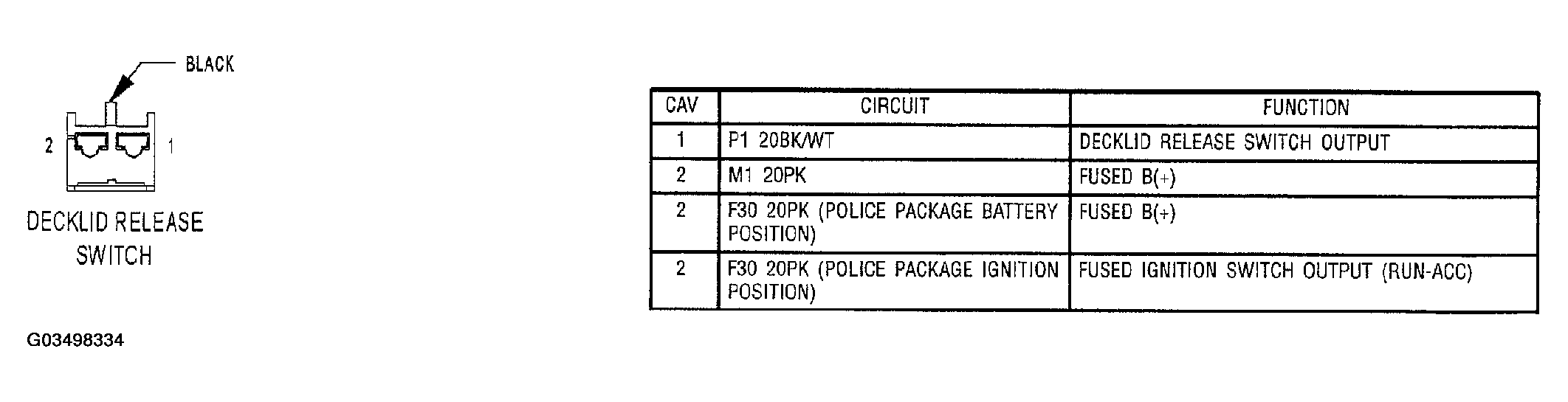

Fig 1: Decklid Release Switch Connector End View

G03498334

Courtesy of DAIMLERCHRYSLER CORP.
