TP Sensor Harness Connector End View (3.5L)

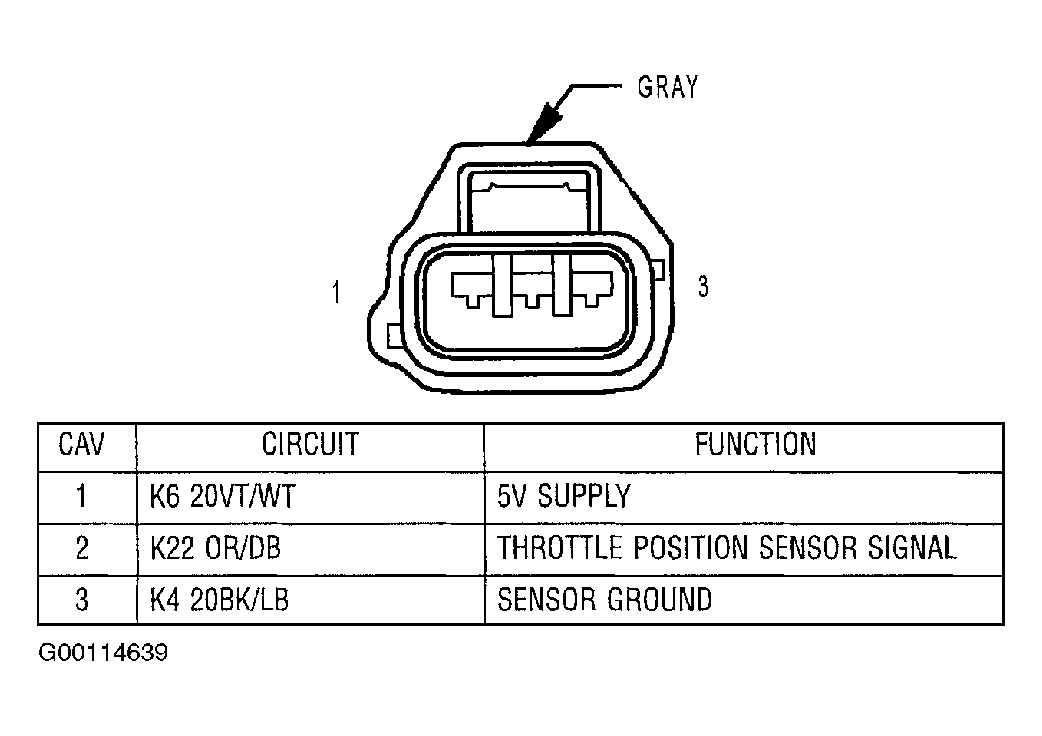

Fig 1: Identifying TP Sensor Harness Connector (3.5L)

G00114639

Courtesy of DAIMLERCHRYSLER CORPORATION
