Sunroof Control Module Connector End View

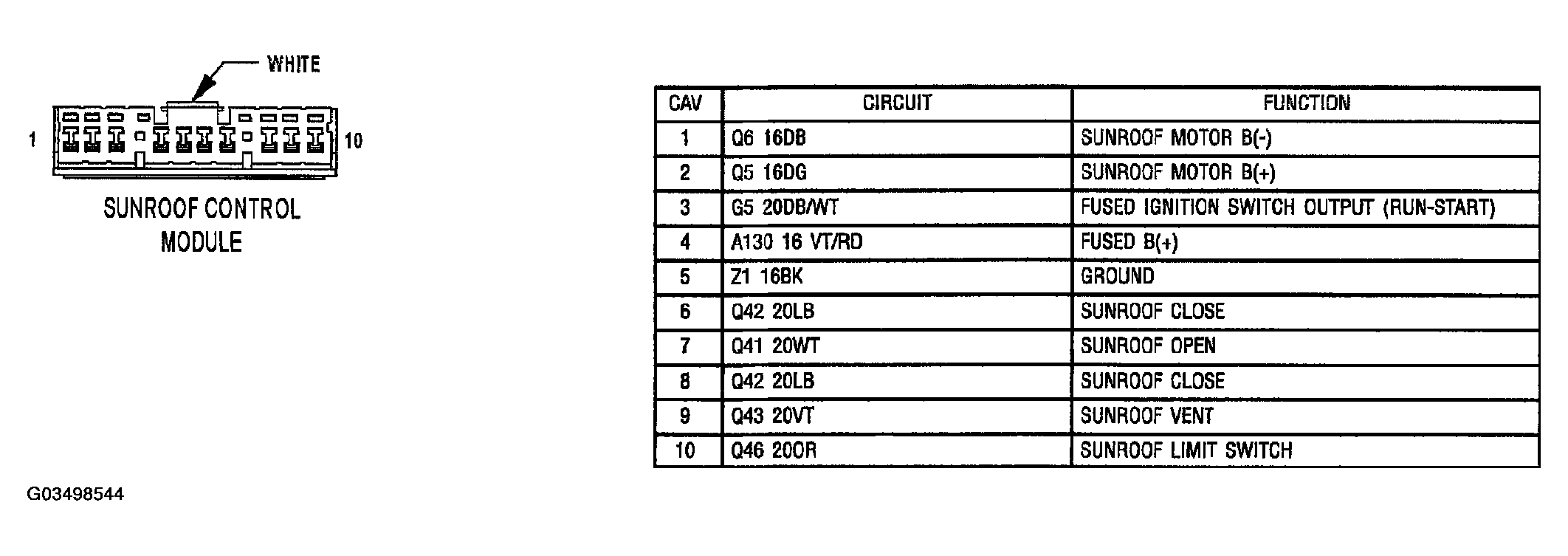

Fig 1: Sunroof Control Module Connector End View

G03498544

Courtesy of DAIMLERCHRYSLER CORP.
