DECKLID Security Switch: Installation

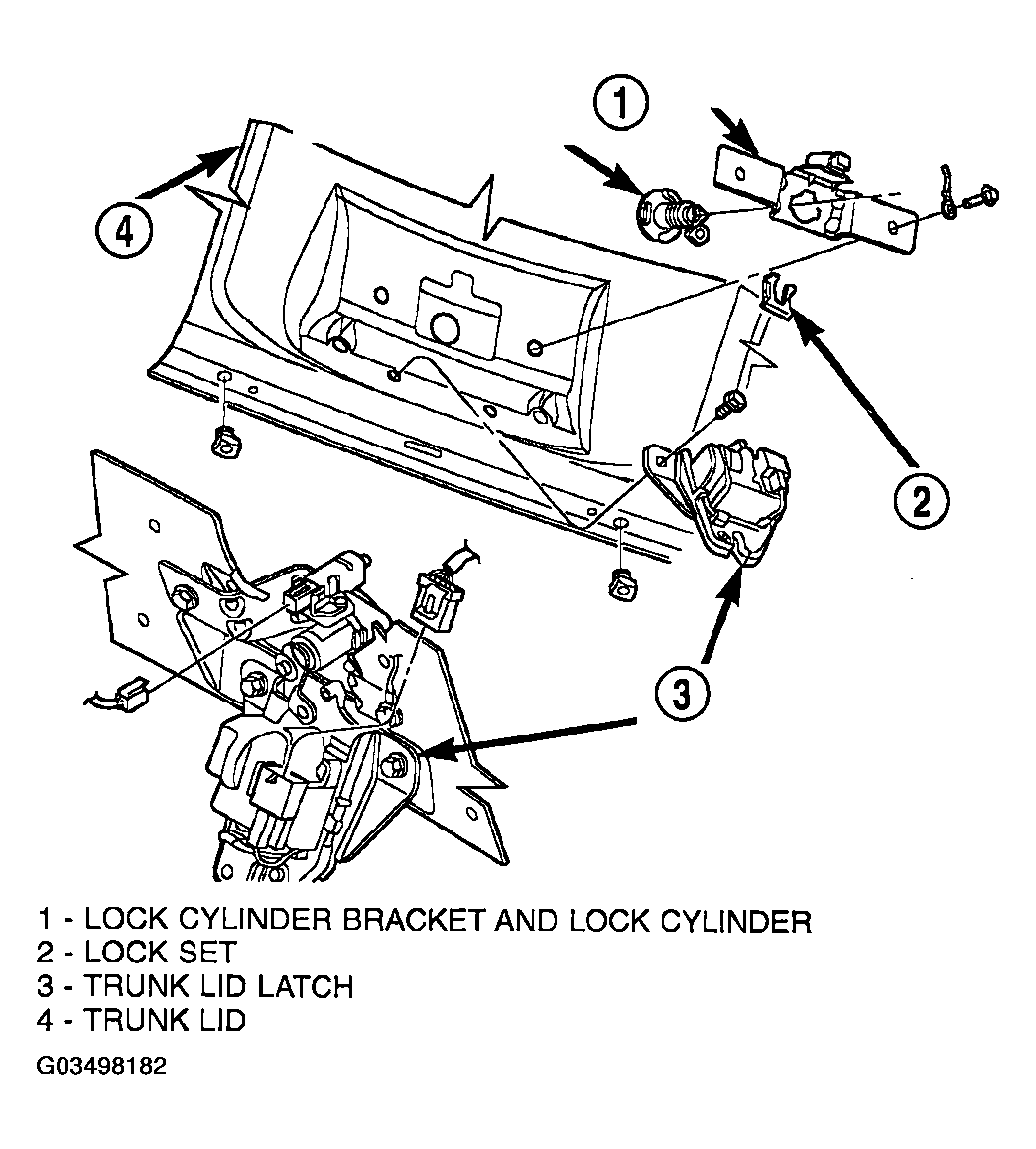

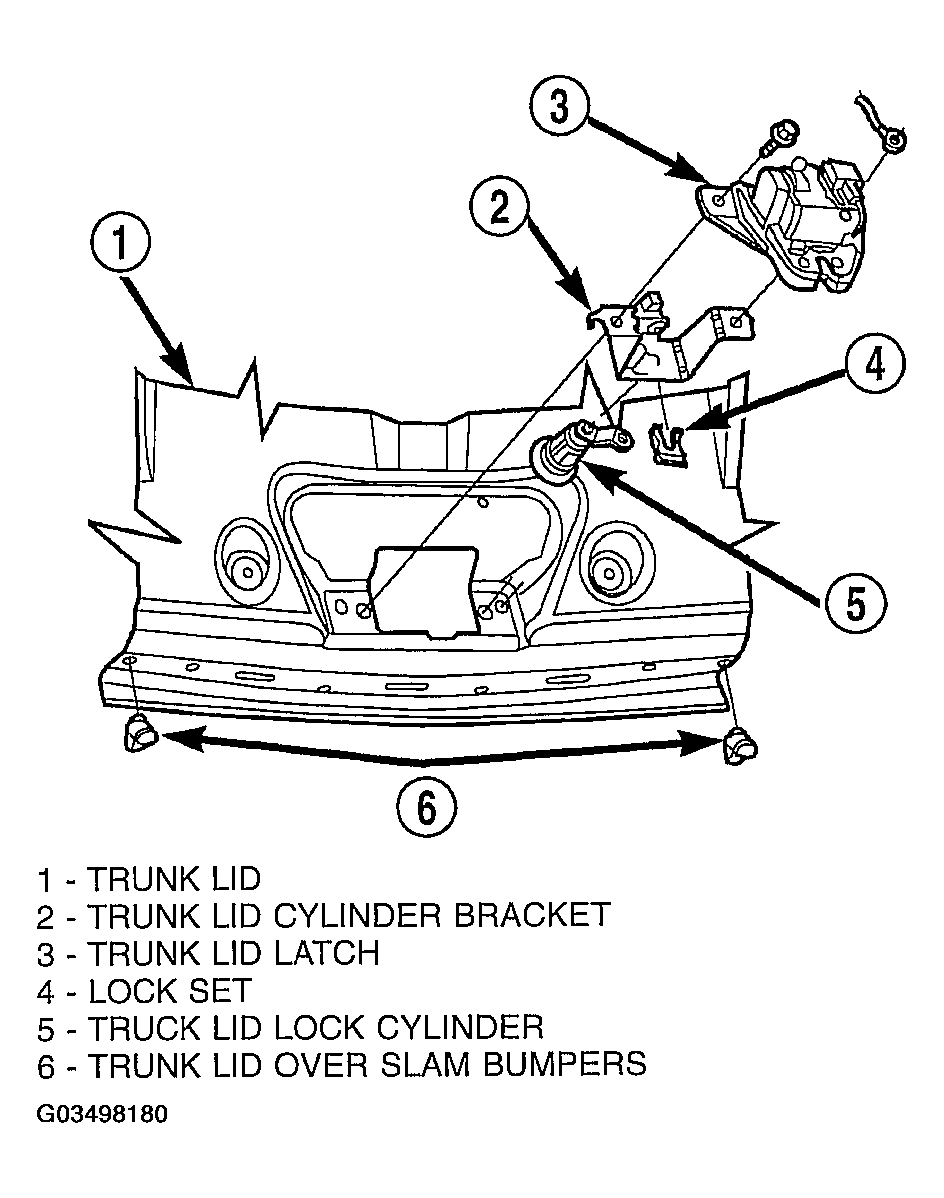

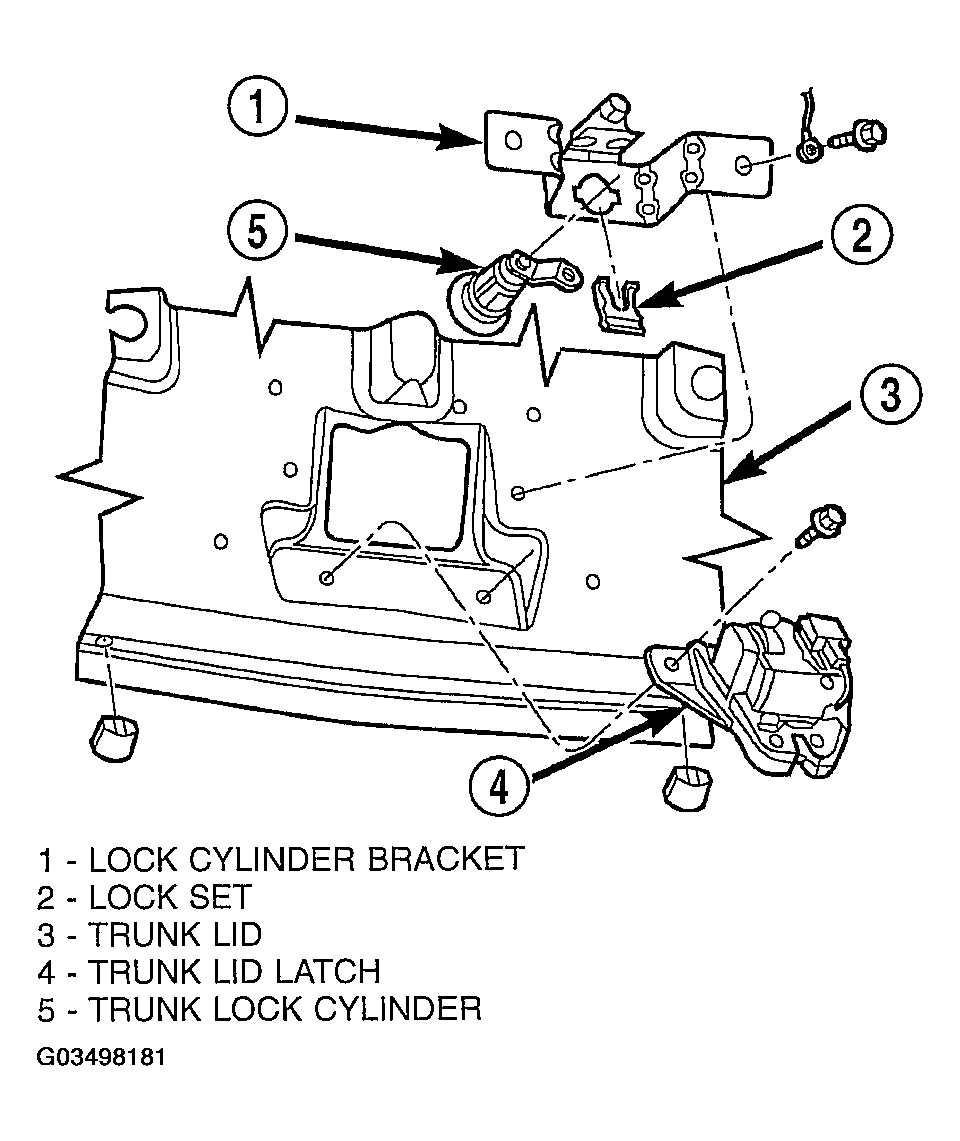

  1. Connect connector and install the deck lid lock cylinder onto bracket (Figure ), (Figure ), and (Figure ).
  2. Refer to LATCH .
  3. Connect the negative battery cable remote terminal onto the remote battery post.
