Sun Sensor/VTSS Led Connector End View

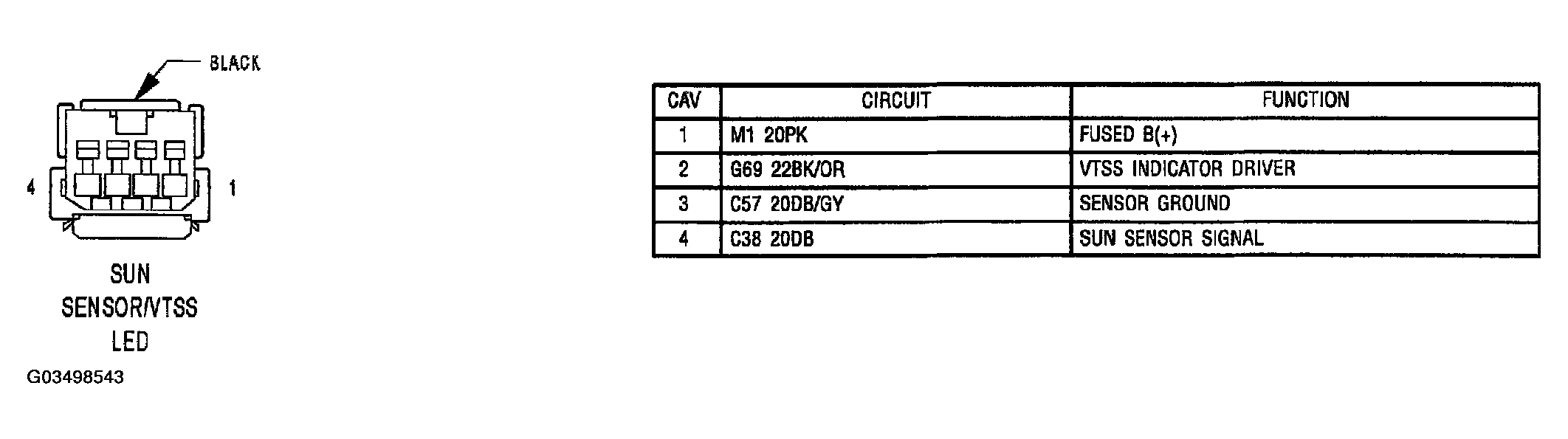

Fig 1: Sun Sensor/VTSS LED Connector End View

G03498543

Courtesy of DAIMLERCHRYSLER CORP.
