Crankshaft Position Sensor Connector End View

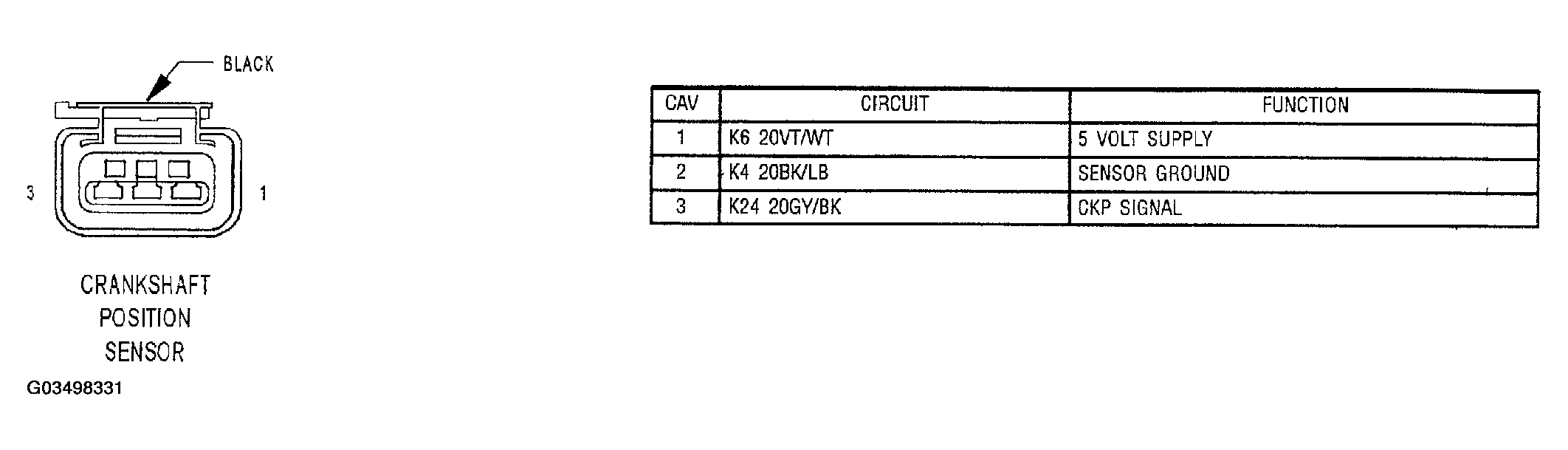

Fig 1: Crankshaft Position Sensor Connector End View

G03498331

Courtesy of DAIMLERCHRYSLER CORP.
