Wheel Alignment Specifications & Adjustment Procedures: Description: Camber

Camber is inward or outward tilt of top of tire and wheel assembly. See Fig 1. Camber is measured in degrees of angle relative to a true vertical line. Camber is a tire wearing angle and can cause the following wear:

• Excessive negative camber will cause tread wear on inside of tire.
• Excessive positive camber will cause tread wear on outside of tire.

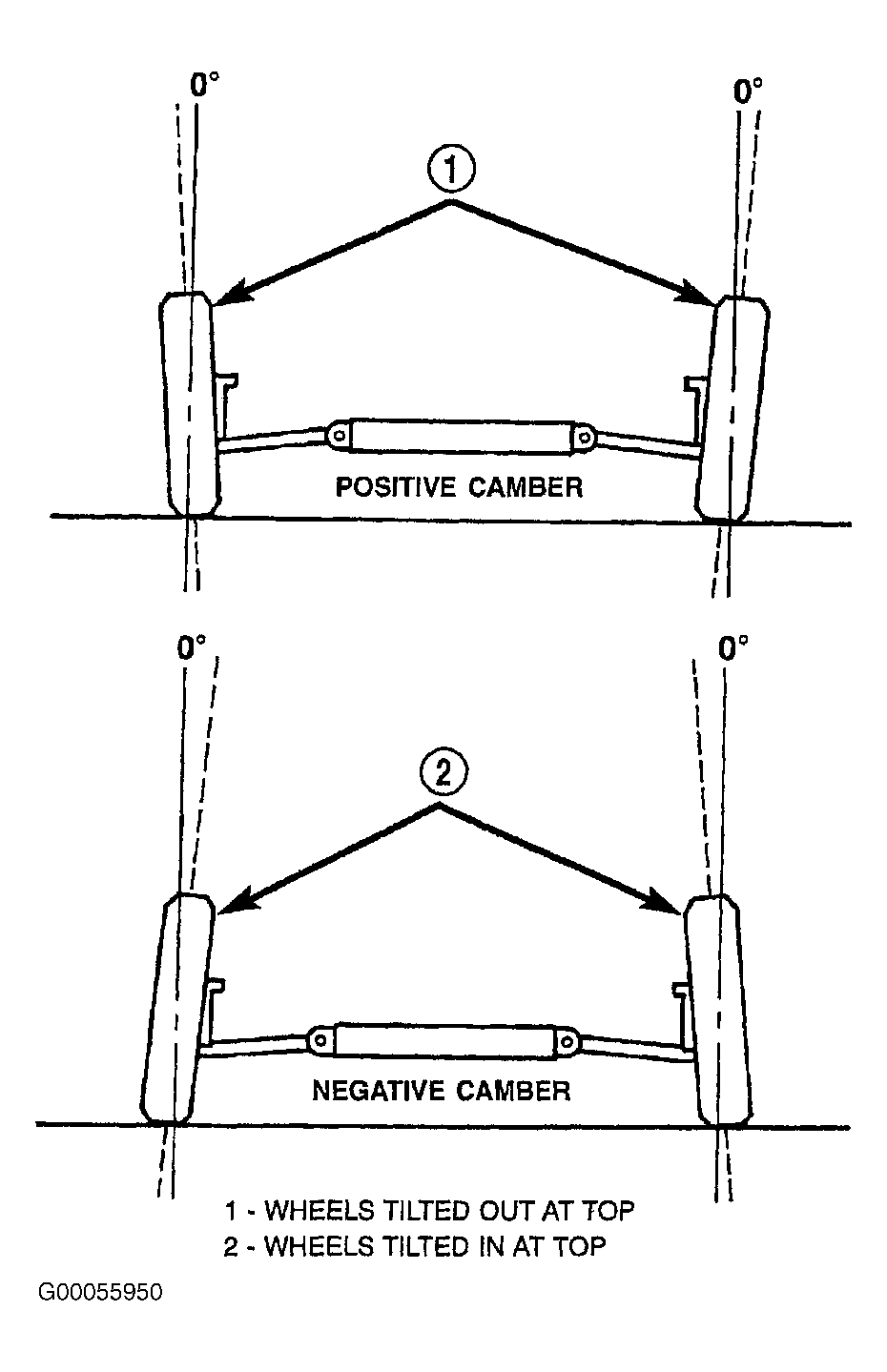

Fig 1: Identifying Camber

Courtesy of CHRYSLER CORP.
