Ignition Lock Cable: Removal

Disconnect the negative battery cable.
Remove the ashtray (2) at front of center console. See BODY article.

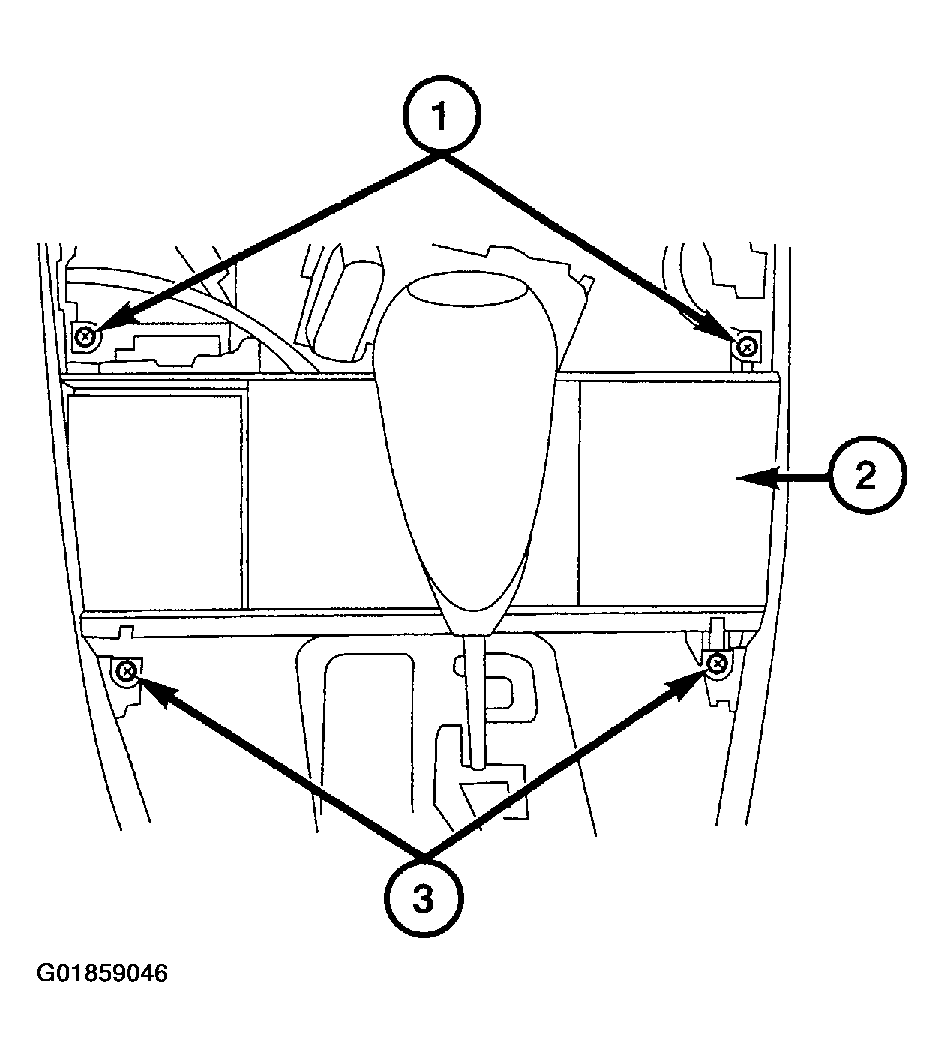

Fig 1: Removing Ashtray
Courtesy of DAIMLERCHRYSLER CORP.
Remove the lower instrument panel (2). See BODY article.

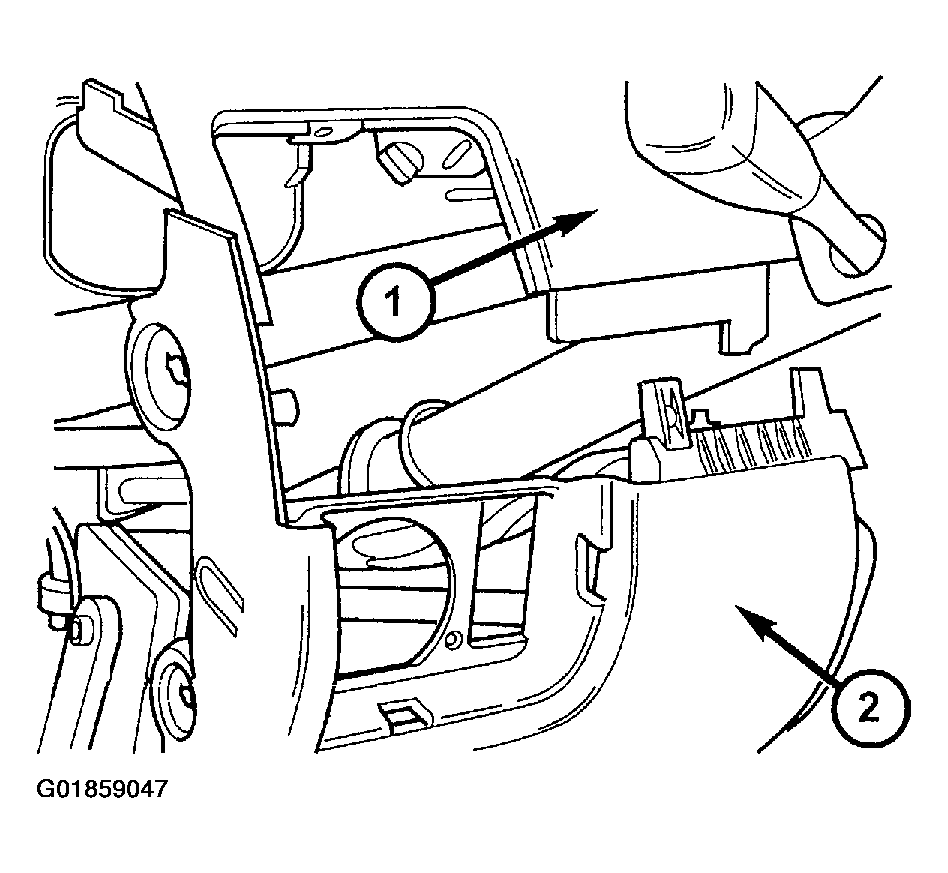

Fig 2: Removing Lower Instrument Panel
Courtesy of DAIMLERCHRYSLER CORP.
Press the locking tabs together and push the ignition lock cable (1) out of ignition/starter switch in the direction of the arrows.

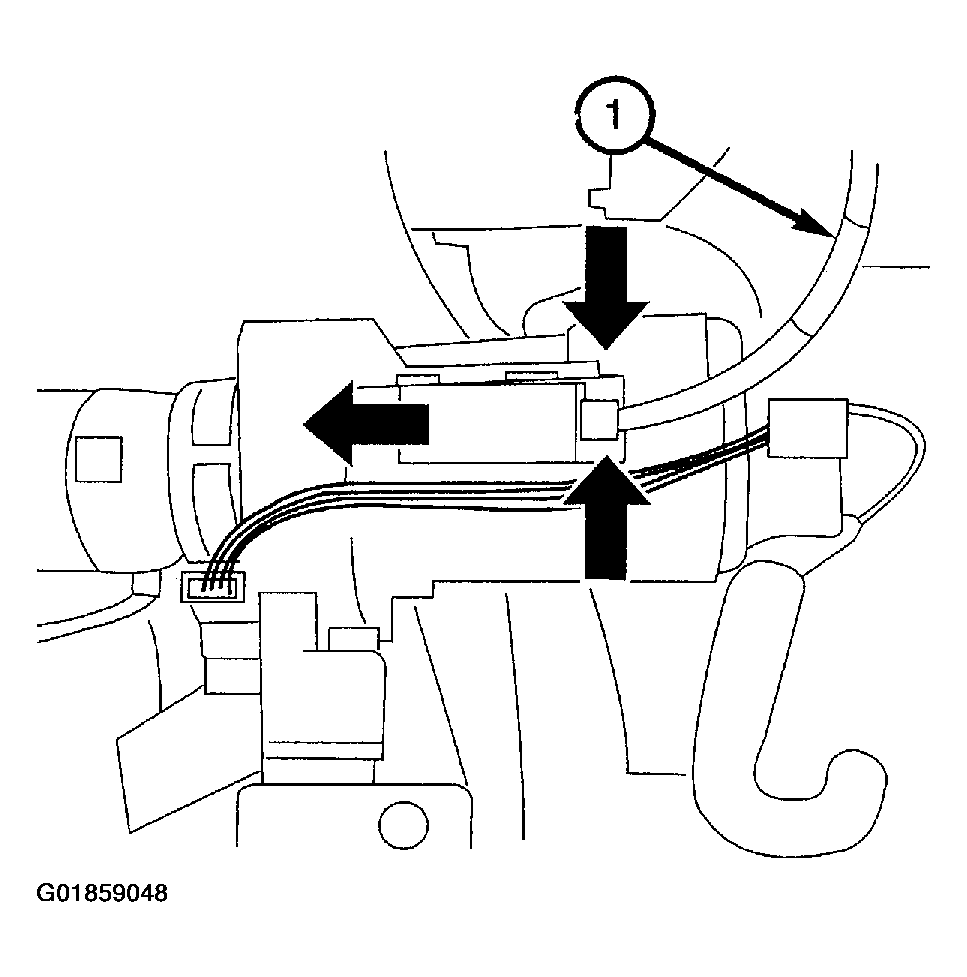

Fig 3: Pushing Ignition Lock Cable Out Of Ignition
Courtesy of DAIMLERCHRYSLER CORP.
Remove the shifter bezel (1). See BODY article.

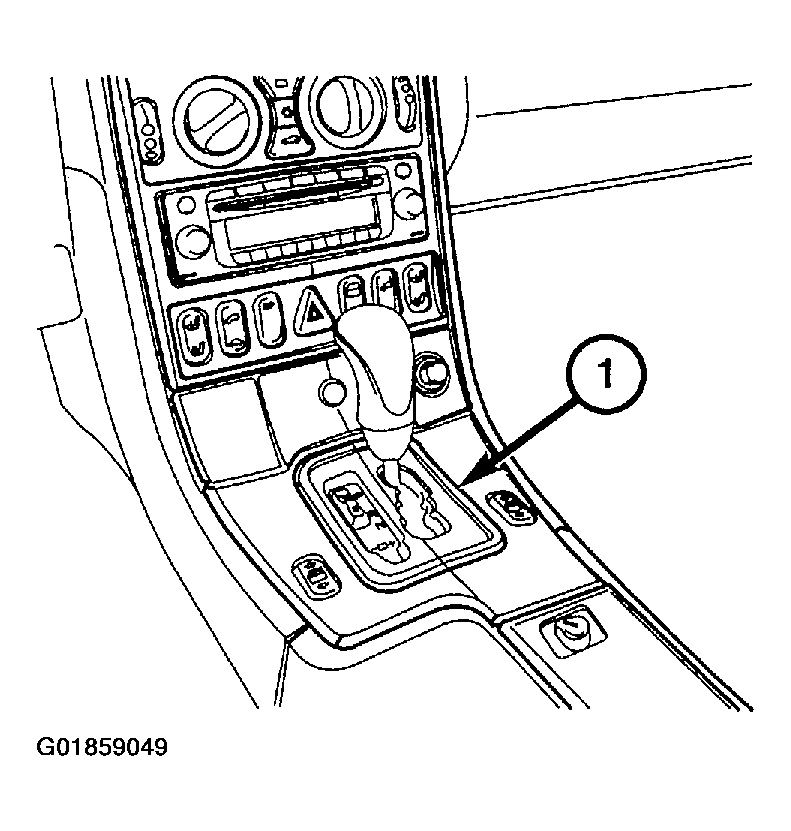

Fig 4: Removing Shifter Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Remove the ignition lock cable (1) from electronic selector lever module by turning it 90° to the left and then pulling it straight out.

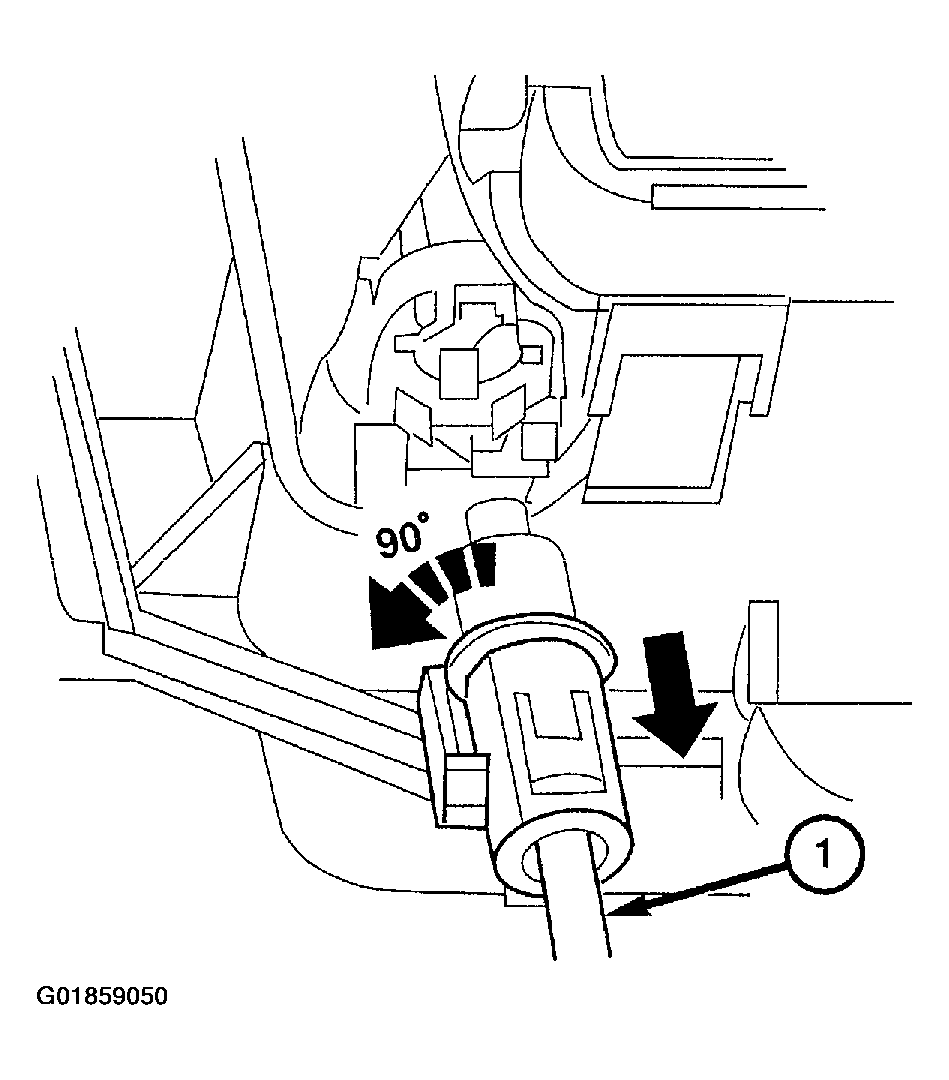

Fig 5: Removing Ignition Lock Cable From Electronic Selector Lever Module
Courtesy of DAIMLERCHRYSLER CORP.
