Left Front Power Window Switch Connector End View

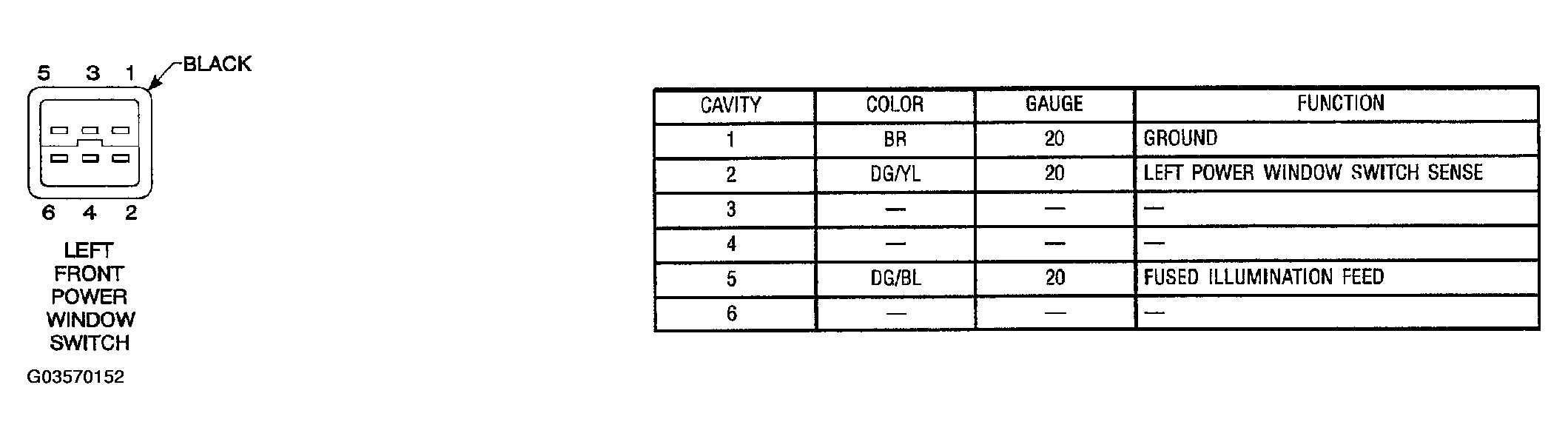

Fig 1: Left Front Power Window Switch Connector End View

G03570152

Courtesy of DAIMLERCHRYSLER CORP.
