Fuel Tank Pressure Sensor Connector End View

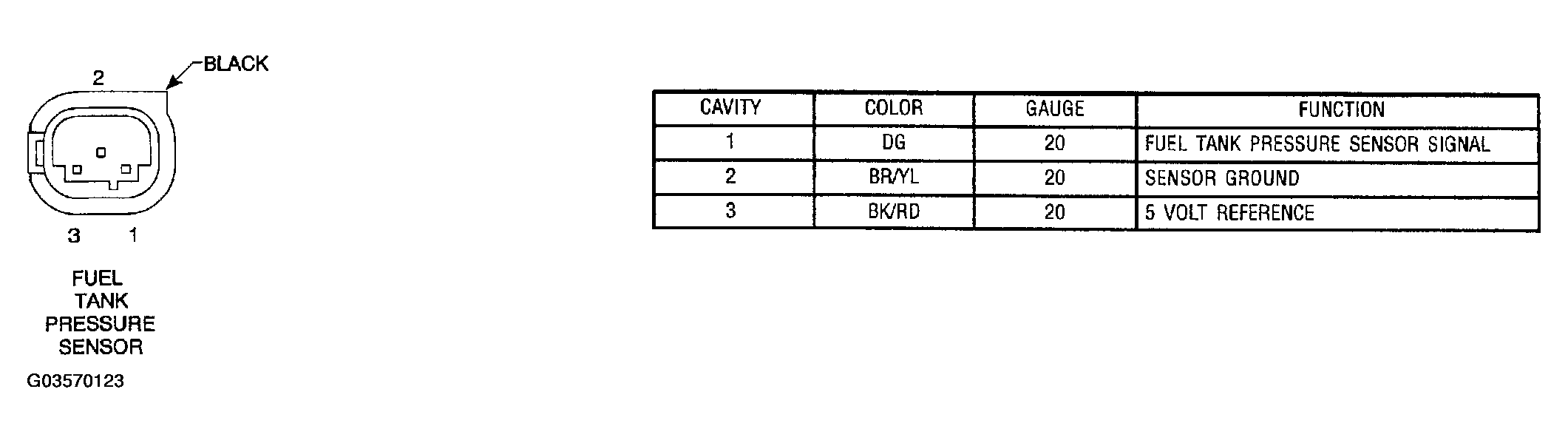

Fig 1: Fuel Tank Pressure Sensor Connector End View

G03570123

Courtesy of DAIMLERCHRYSLER CORP.
