A/C Pressure Sensor Connector End View

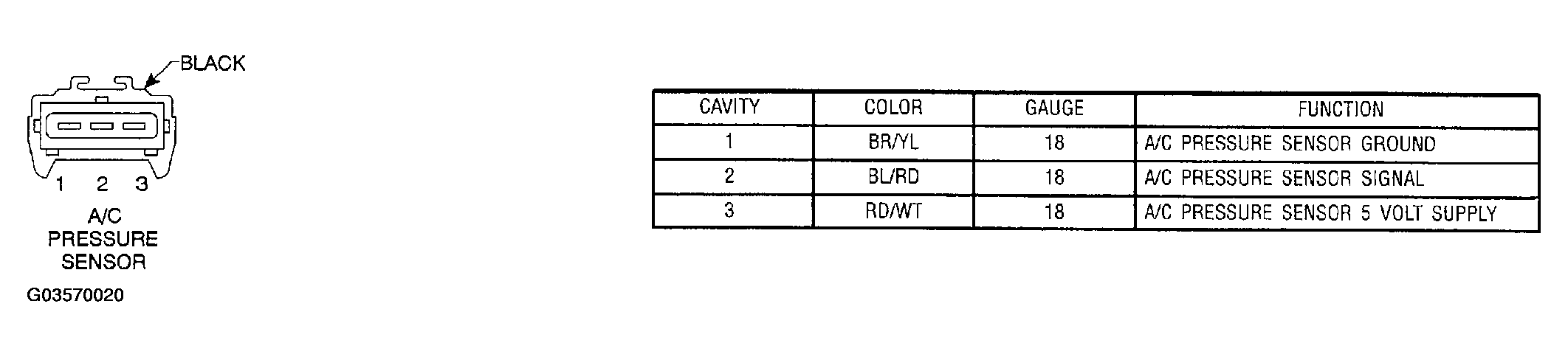

Fig 1: A/C Pressure Sensor Connector End View

G03570020

Courtesy of DAIMLERCHRYSLER CORP.
