7. Can C Bus (+) Circuit Open

With the ignition off.

Measure the resistance of the CAN C BUS (+) circuit from the PCM C4 harness connector to the SKREEM C2 harness connector.

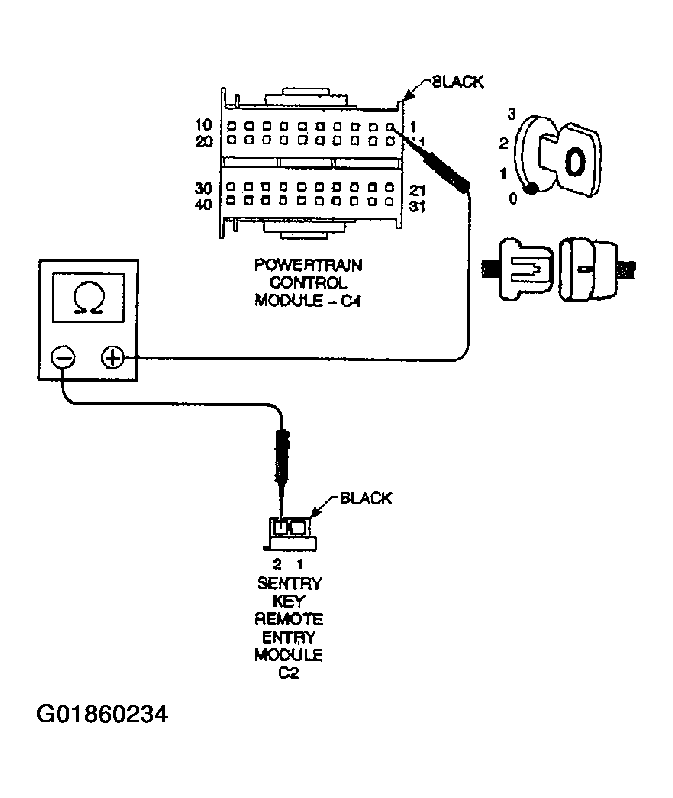

Fig 1: Measuring Resistance Of CAN C BUS (+) Circuit
G01860234Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go To 8
  2. No  >> Repair the CAN C BUS (+) circuit for an open.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
