5. SKREEM Termination

With the ignition off.

Measure the resistance of the SKREEM CAN C Bus termination by backprobing the CAN C Bus (+) circuit to the CAN C Bus (-) circuit at the SKREEM C2 harness connector.

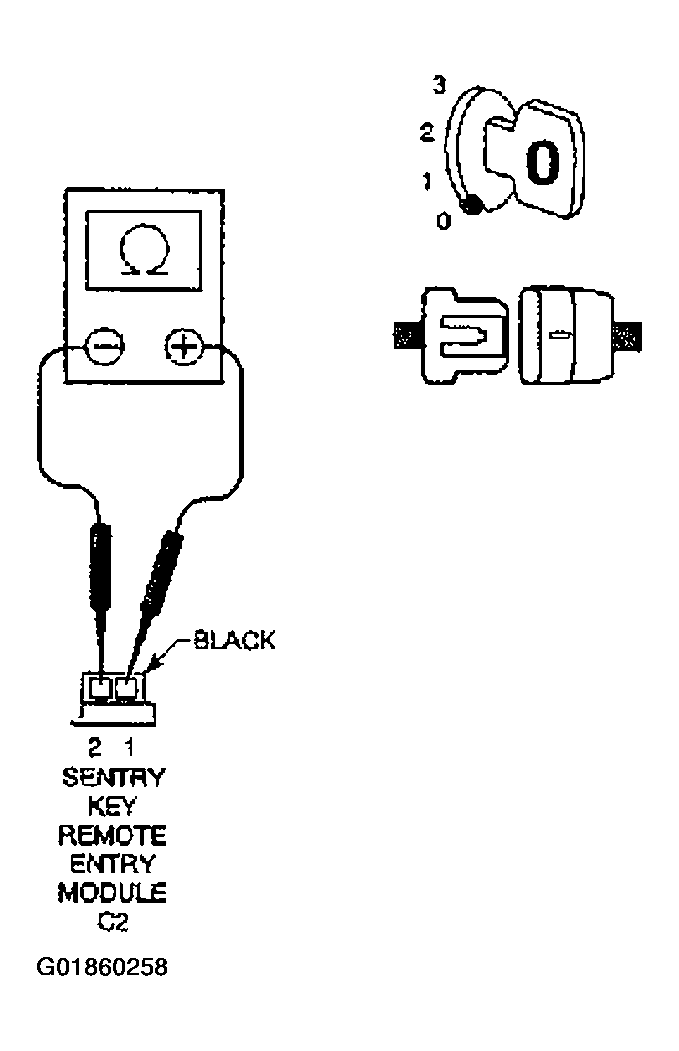

Fig 1: Measuring Resistance Of SKREEM CAN C BUS Termination
G01860258Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance between 110 and 130 ohms?

  1. Yes  >> Go To 6
  2. No  >> Replace the SKREEM. See ELECTRONIC CONTROL MODULES article.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
