4. Pcm Can C Bus Termination

With the ignition off.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the SKREEM CAN C Bus termination by backprobing the CAN C Bus (+) circuit to the CAN C Bus (-) circuit at the PCM C4 harness connector.

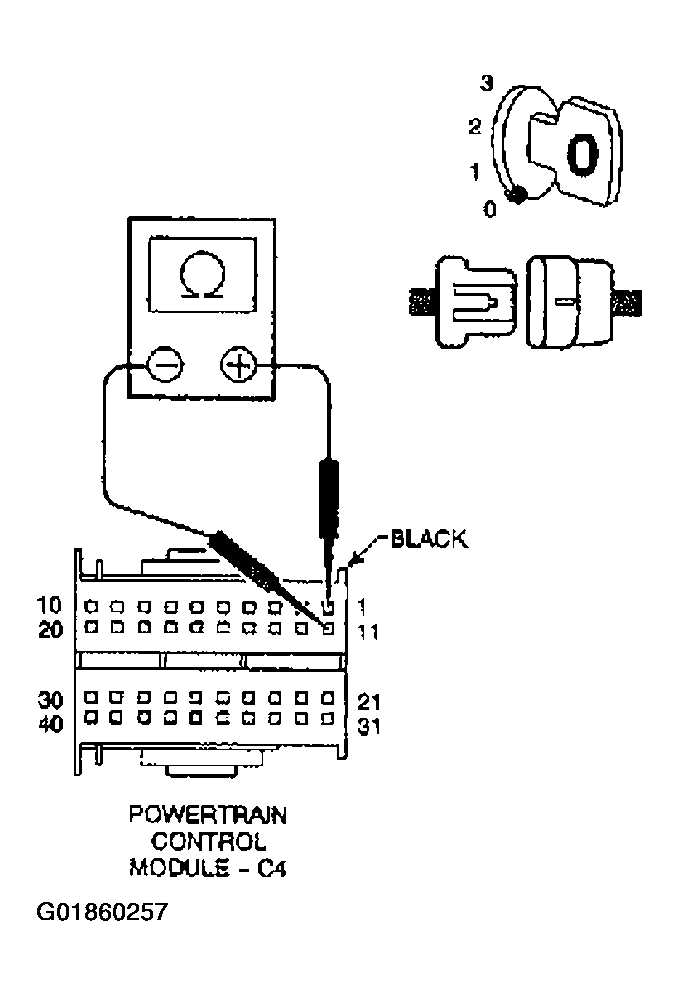

Fig 1: Measuring Resistance Of SKREEM CAN C BUS Termination
G01860257Courtesy of DAIMLERCHRYSLER CORP.

Is the SKREEM CAN C Bus termination resistance between 110 and 130 ohms?

  1. Yes  >> Replace and program the Powertrain Control Module. See ELECTRONIC CONTROL MODULES article.

    See POWERTRAIN VERIFICATION TEST - VER 2  .

  2. No  >> Go To 5
