10. Can C Bus (-) Circuit Short To Ground

Turn the ignition off.

Measure the resistance between ground and the CAN C Bus (-) circuit.

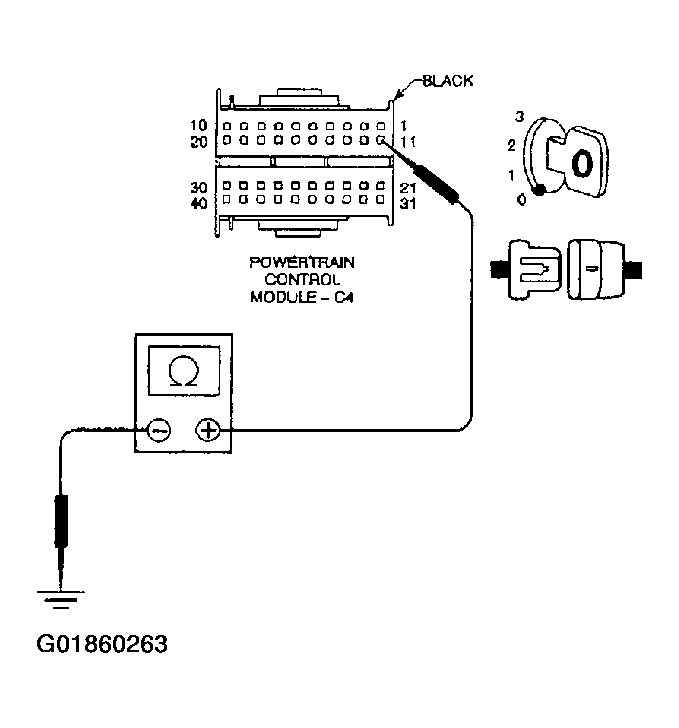

Fig 1: Measuring Resistance Between Ground & CAN C BUS- Circuit
G01860263Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 100 ohms?

  1. Yes  >> Repair the CAN C Bus (-) circuit for a short to ground.

    See POWERTRAIN VERIFICATION TEST - VER 2  .

  2. No  >> Repair the CAN C Bus (+) circuit for a short to ground.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
