Circuit Diagram & Connector Identification

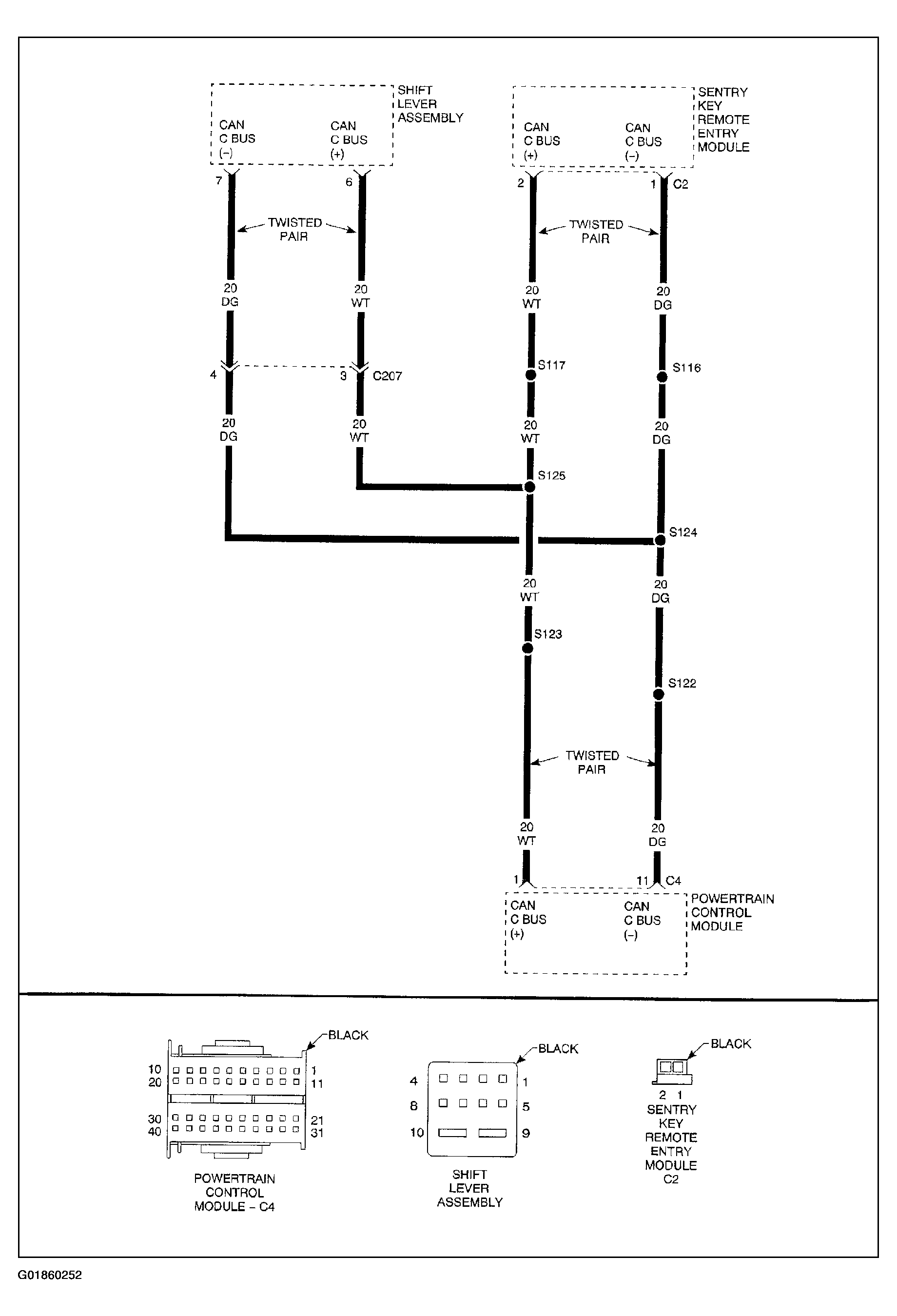

Fig 1: Identifying DTC P0600 Circuit Diagram & Connector Identification

G01860252

Courtesy of DAIMLERCHRYSLER CORP.
