Circuit Diagram & Connector Identification

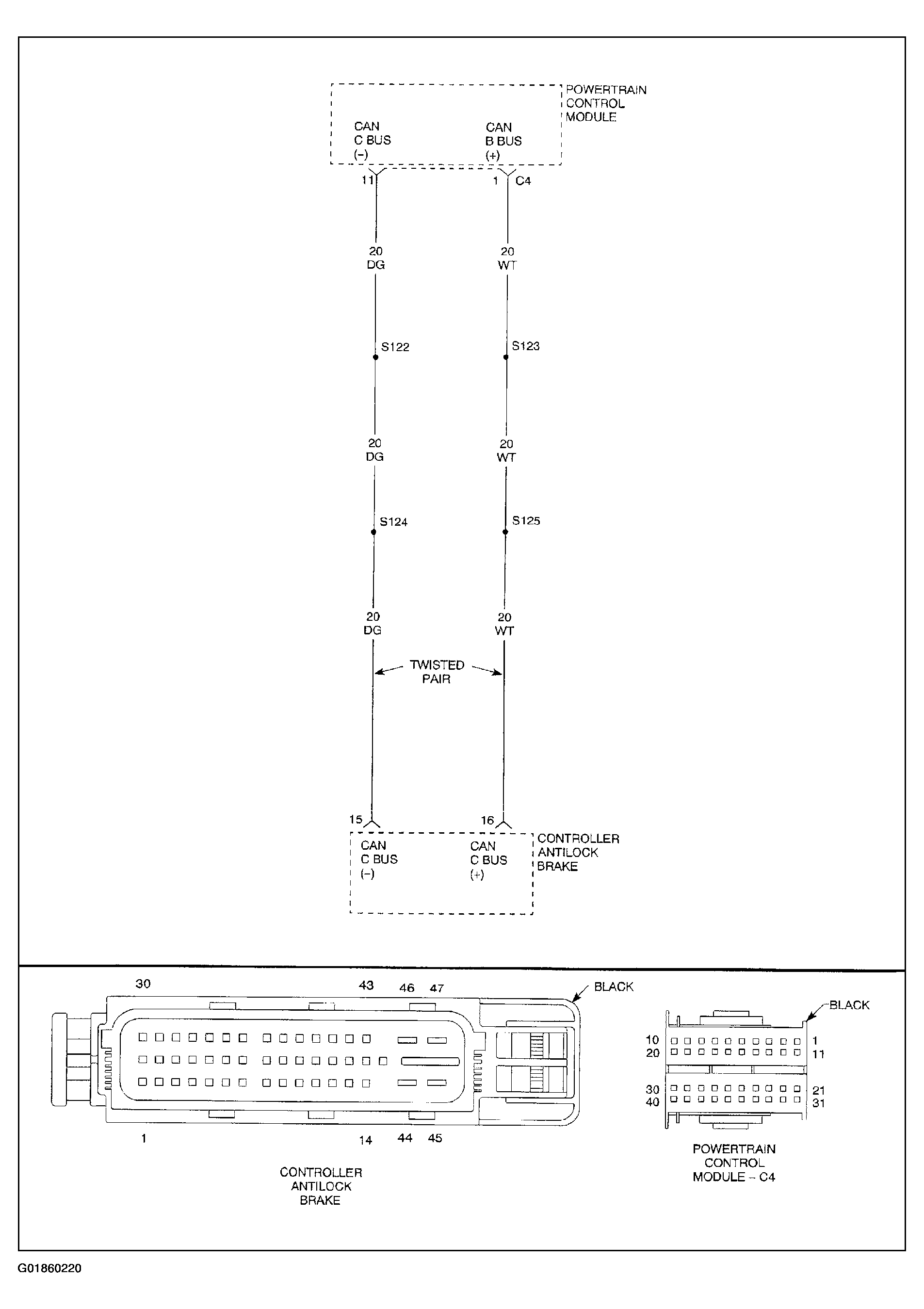

Fig 1: Identifying DTC P0571 Circuit Diagram & Connector Identification
G01860220Courtesy of DAIMLERCHRYSLER CORP.

For a complete Electronic Control Module Circuit Diagram, see SCHEMATICS AND DIAGRAMS  .
