Circuit Diagram & Connector Identification

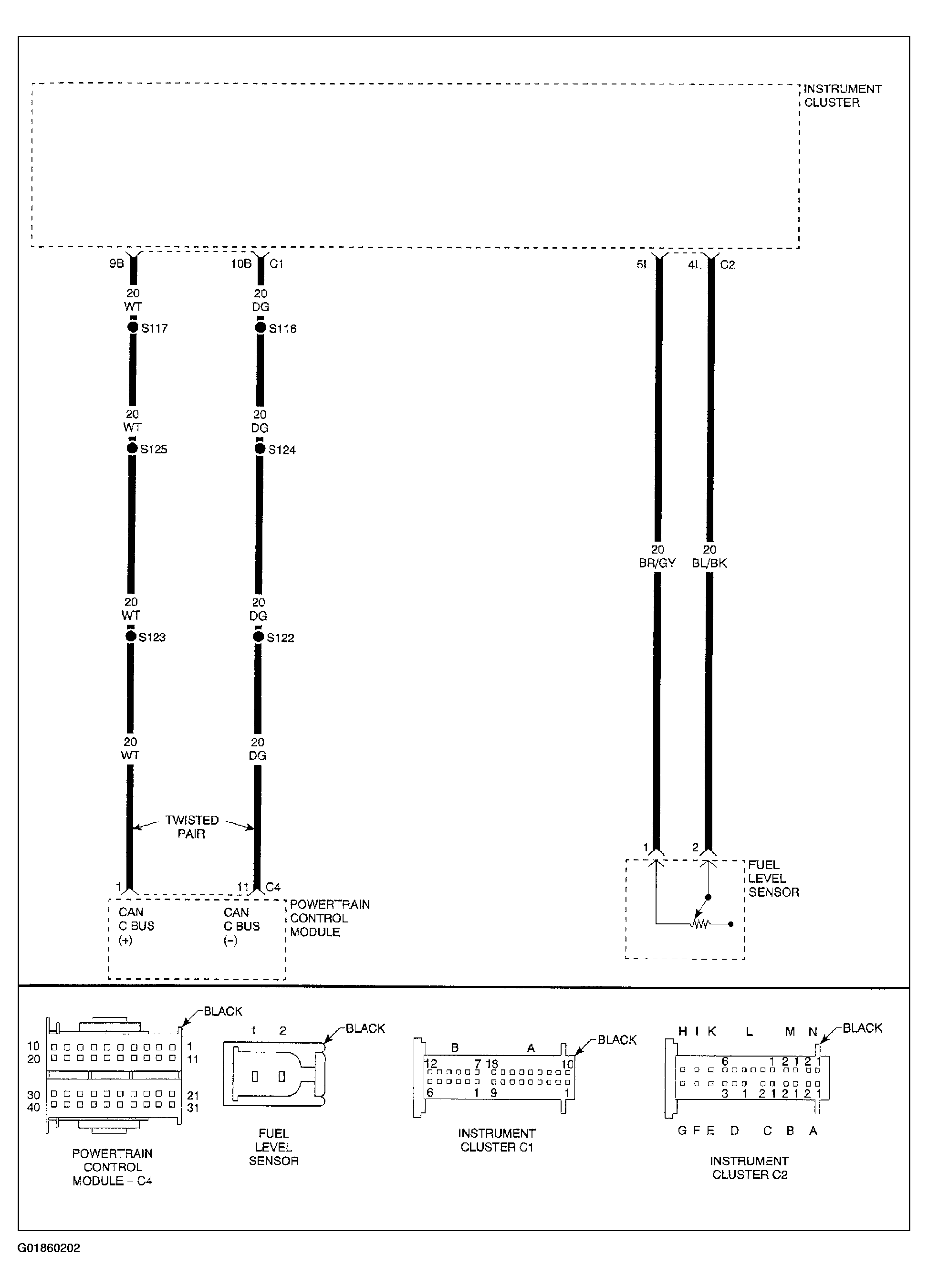

Fig 1: Identifying DTC P0460 Circuit Diagram & Connector Identification

G01860202

Courtesy of DAIMLERCHRYSLER CORP.
