2. Fused Engine Control Relay Output Circuit Open

Turn the ignition off.

Disconnect the EVAP Purge Solenoid harness connector.

Turn the ignition on.

Measure the voltage of the Fused Engine Control Relay Output circuit at the EVAP Purge Solenoid harness connector.

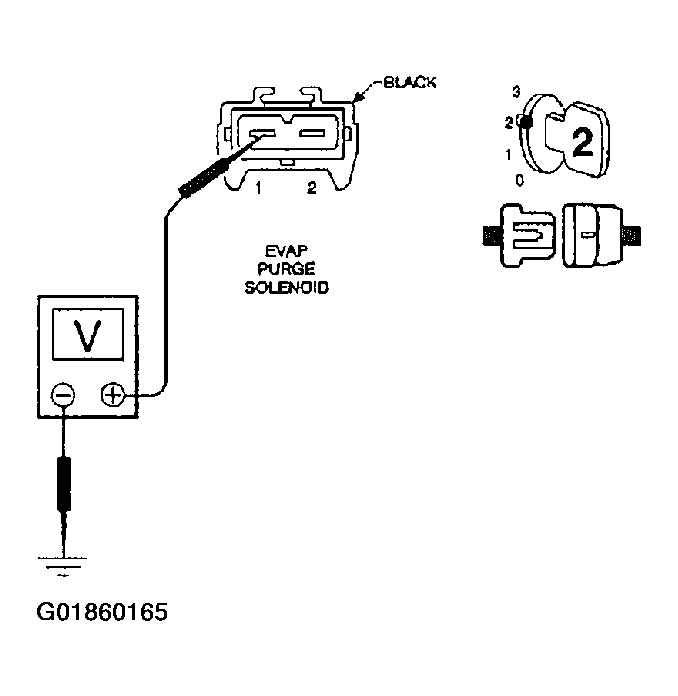

Fig 1: Measuring Voltage Of Fused Engine Control Relay Output Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

1. Yes  >> Go To 3
2. No  >> Repair the Fused Engine Control Relay Output circuit for an open.

   See POWERTRAIN VERIFICATION TEST - VER 2  .
