5. CMP Signal Circuit Open

With the ignition off.

Measure the resistance of the CMP Signal circuit from the CMP Sensor harness connector to the PCM harness connector.

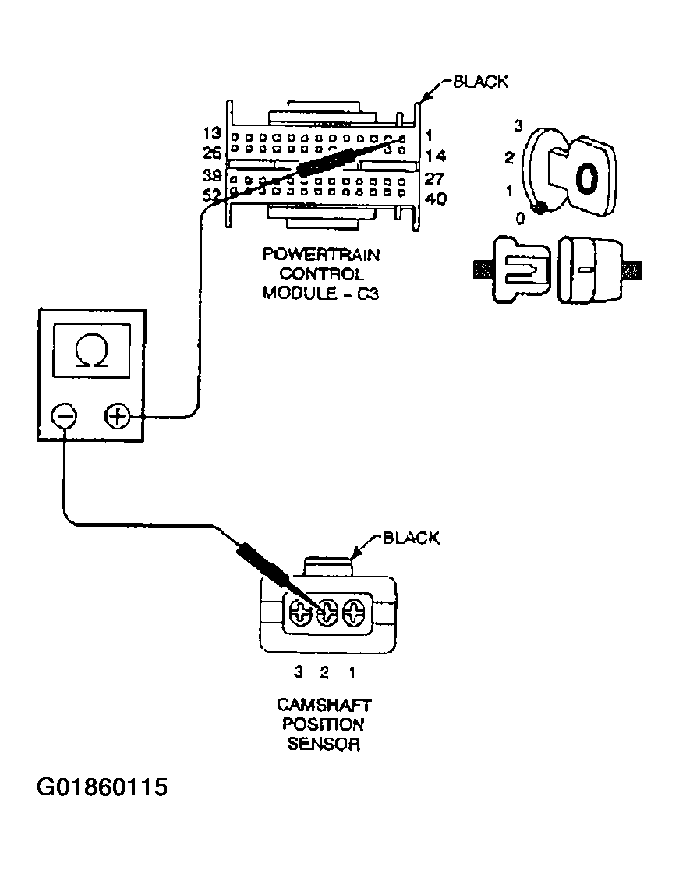

Fig 1: Measuring Resistance Of CMP Signal Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

1. Yes  >> Go To 6

   See POWERTRAIN VERIFICATION TEST - VER 2  .

2. No  >> Repair the CMP Signal circuit for an open.

   See POWERTRAIN VERIFICATION TEST - VER 2  .
