7. Open CKP Sensor Ground Circuit

With the ignition off.

Measure the resistance of the CKP Sensor Signal circuit from the CKP harness connector to the PCM C3 harness connector.

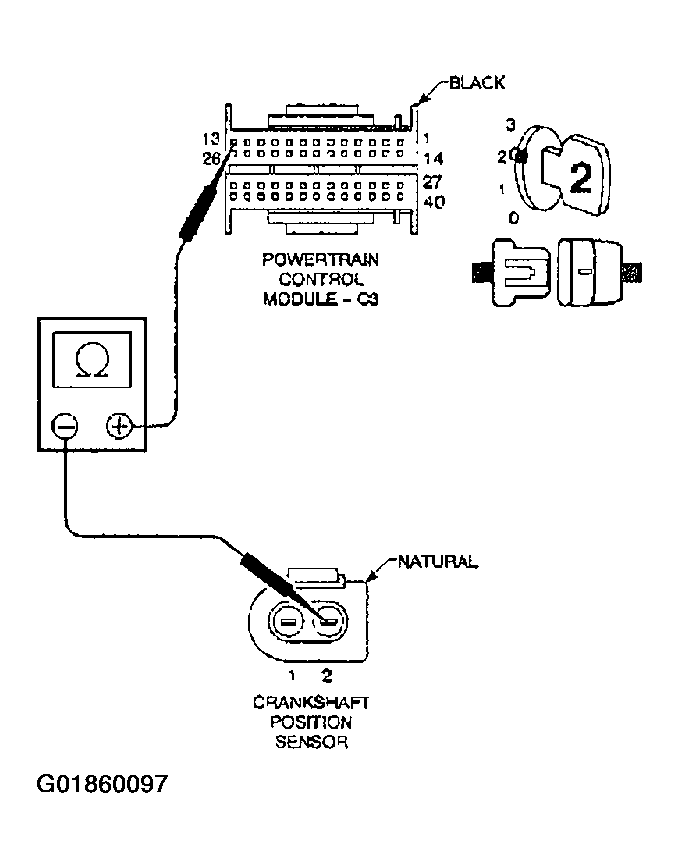

Fig 1: Measuring Resistance Of CKP Sensor Signal Circuit From CKP Harness Connector To PCM C3 Harness Connector

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

1. Yes  >> Repair the CKP Sensor Signal circuit for an open.

   POWERTRAIN VERIFICATION TEST - VER 2

2. No  >> Replace and program the Powertrain Control Module. See ELECTRONIC CONTROL MODULES .

   POWERTRAIN VERIFICATION TEST - VER 2
