3. CKP Sensor Signal Circuit

With the ignition off.

Disconnect the Crankshaft Position Sensor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.

Measure the voltage of the CKP Sensor Signal circuit at the CKP Sensor harness connector.

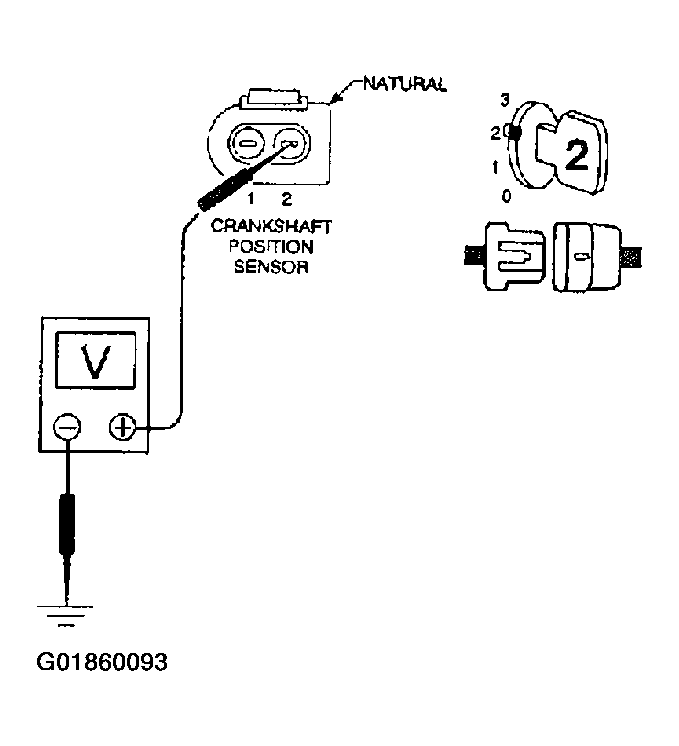

Fig 1: Measuring Voltage Of CKP Sensor Signal Circuit AT CKP Sensor Harness Connector
G01860093Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage between 2.2 and 2.7 volts?

  1. Yes  >> Go To 4
  2. No  >> Go To 8
