Possible Causes

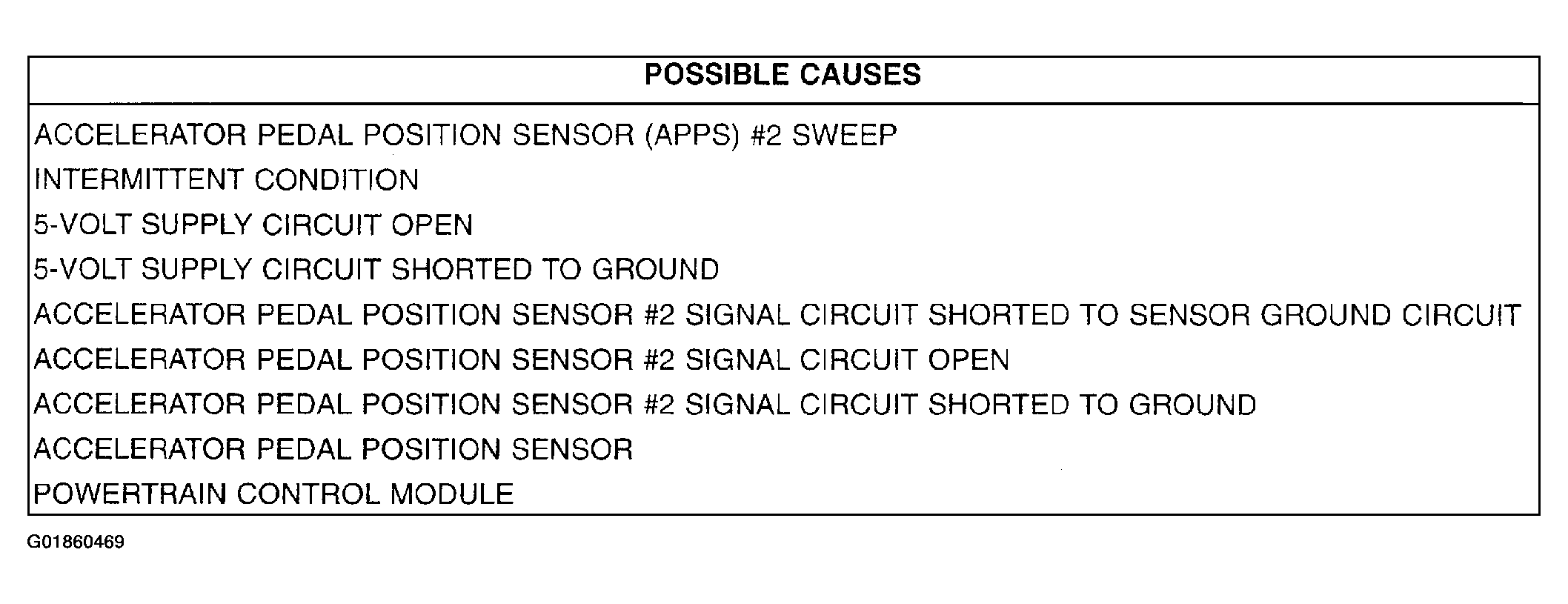

Fig 1: Identifying DTC P0222 Possible Causes

G01860469

Courtesy of DAIMLERCHRYSLER CORP.

For a complete Powertrain Control Module Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
