4. Apps #2 Signal Circuit Open

Turn the ignition off.

Disconnect the PCM C4 harness connectors.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the APPS #2 Signal circuit from the APPS harness connector to the PCM C4 harness connector.

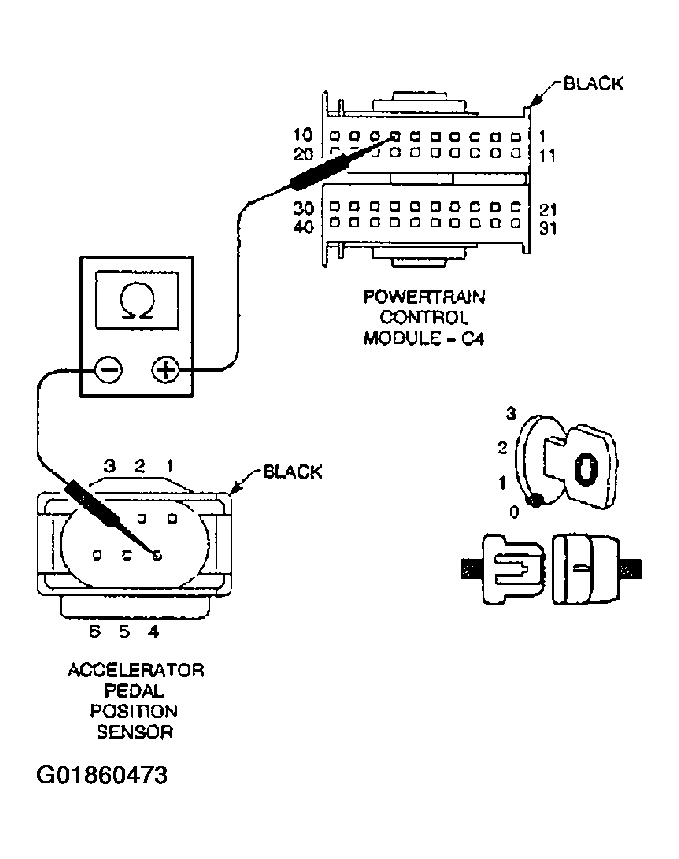

Fig 1: Measuring Resistance Of APPS #2 Signal Circuit
G01860473Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go To 5
  2. No  >> Repair the APPS #2 Signal circuit for an open.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
