Circuit Diagram & Connector Identification

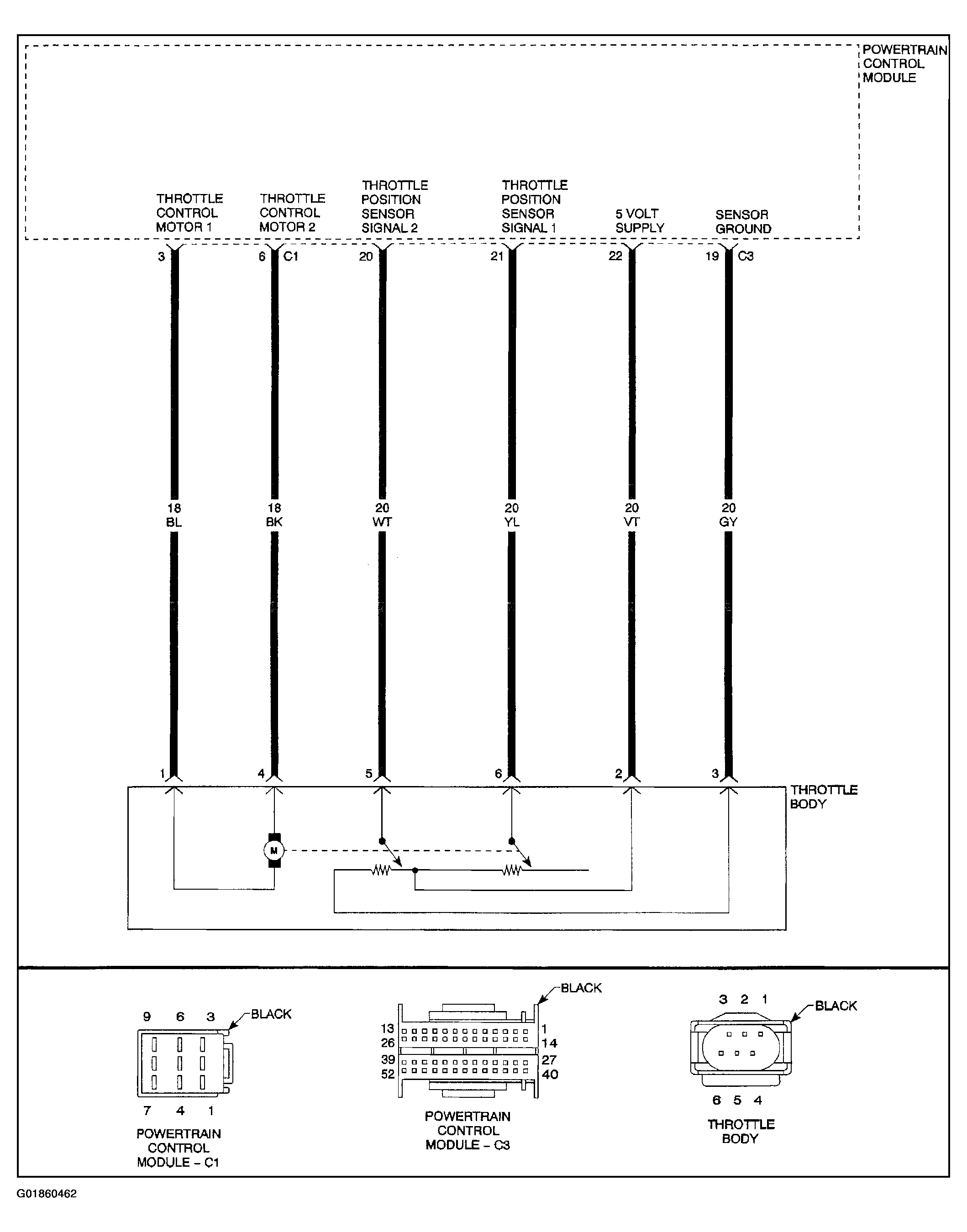

Fig 1: Identifying DTC P0221 Circuit Diagram & Connector Identification

G01860462

Courtesy of DAIMLERCHRYSLER CORP.
