3. Injector Control Circuit Open

Turn the ignition off.

Disconnect the PCM harness connectors.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the Injector Control circuit from the Fuel Injector harness connector to the PCM harness connector.

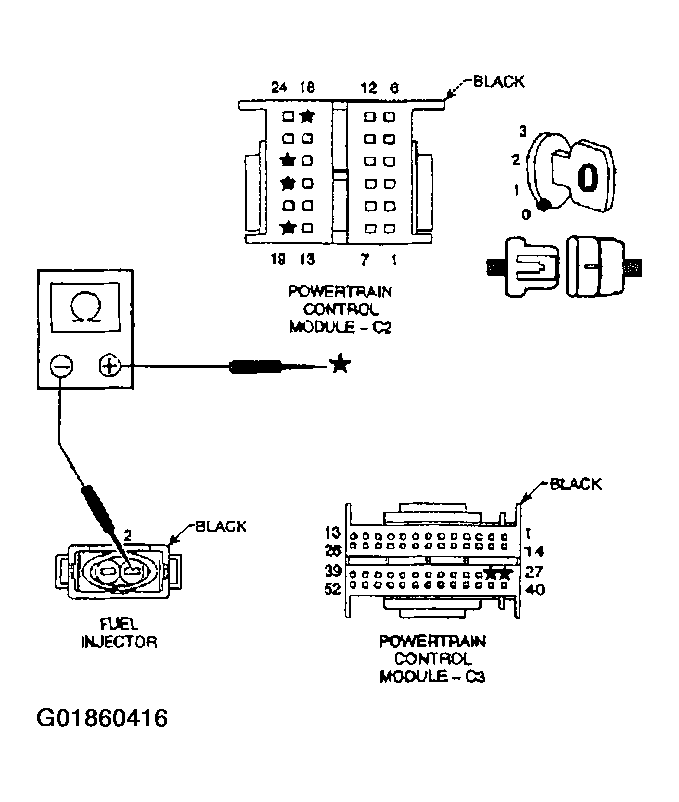

Fig 1: Measuring Resistance Of Injector Control Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

Yes >> Go To 4
No >> Repair the Injector Control circuit for an open.
See POWERTRAIN VERIFICATION TEST - VER 2 .
