2. Fused Engine Control Relay Output Circuit Open

Turn the ignition off.

Disconnect the Fuel Injector harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.

Measure the voltage of the Fused Engine Control Relay Output circuit at the Fuel Injector harness connector.

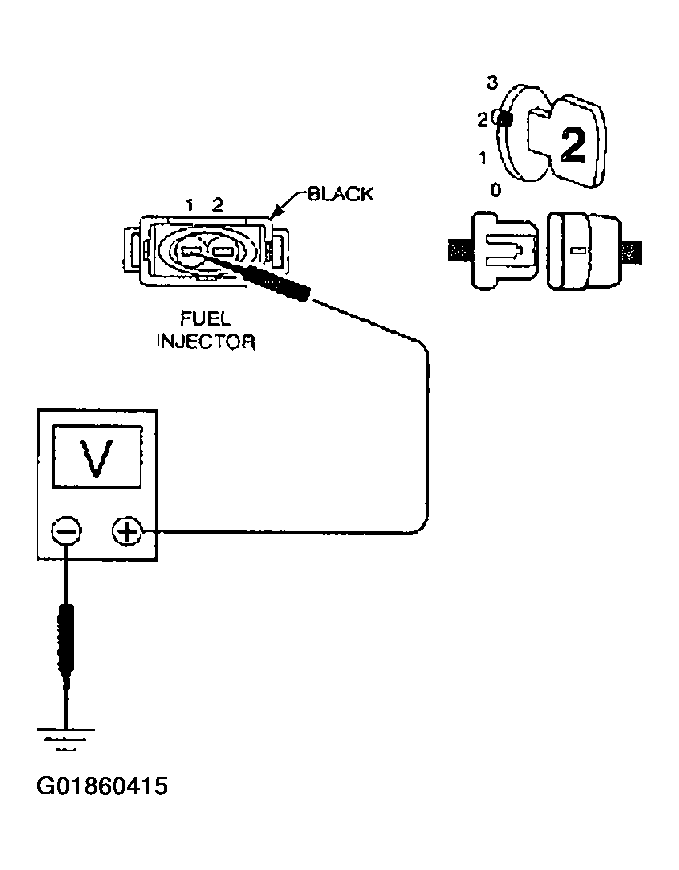

Fig 1: Measuring Voltage Of Fused Engine Control Relay Output Circuit
G01860415Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

  1. Yes  >> Go To 3
  2. No  >> Repair the Fused Engine Control Relay Output circuit for an open.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
