Home >> Chrysler >> 2004 >> Crossfire Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Electrical Diagnostics >> Diagnosis And Testing >> DTC P0175: Fuel System 2/1 Lean Control Bellow Limit (At Idle) >> Possible Causes

Possible Causes

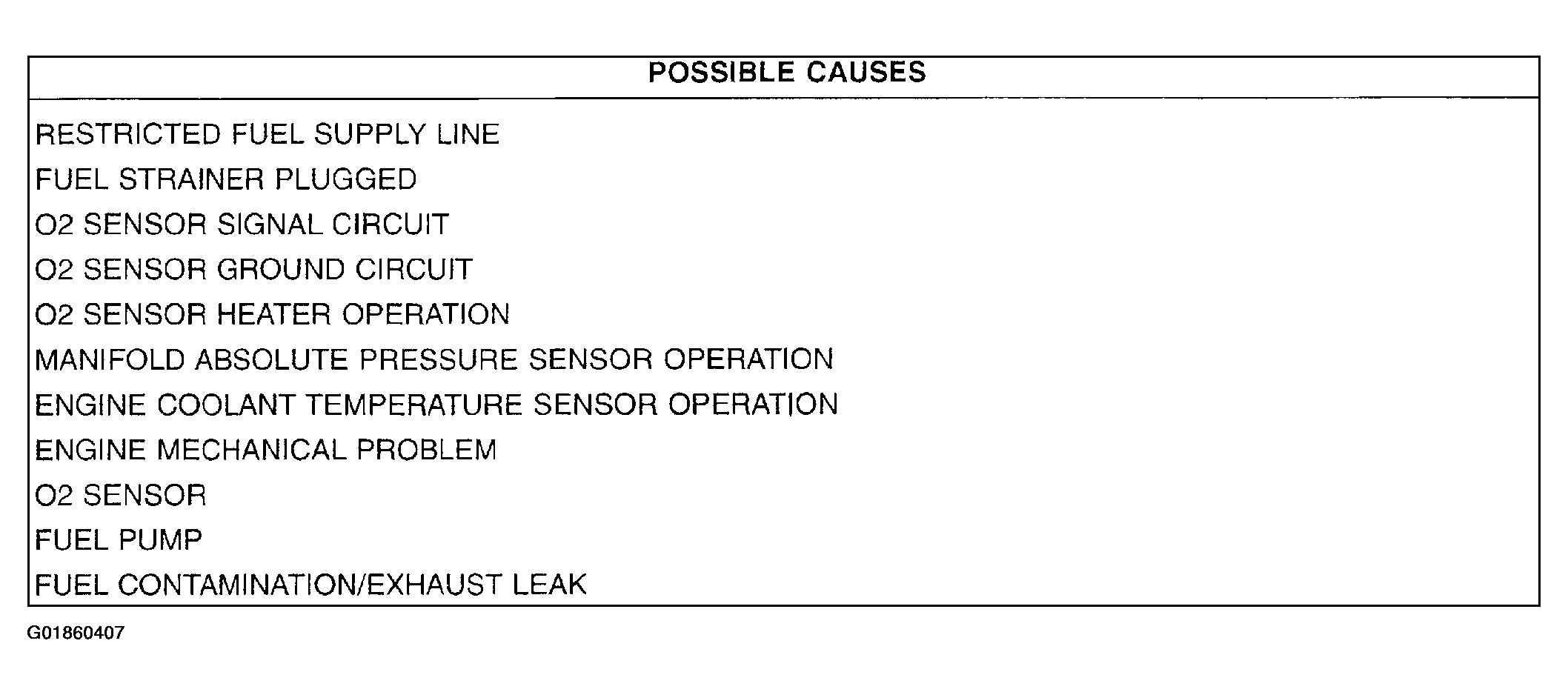

Fig 1: Identifying DTC P0175 Possible Causes
G01860407Courtesy of DAIMLERCHRYSLER CORP.
