Circuit Diagram & Connector Identification

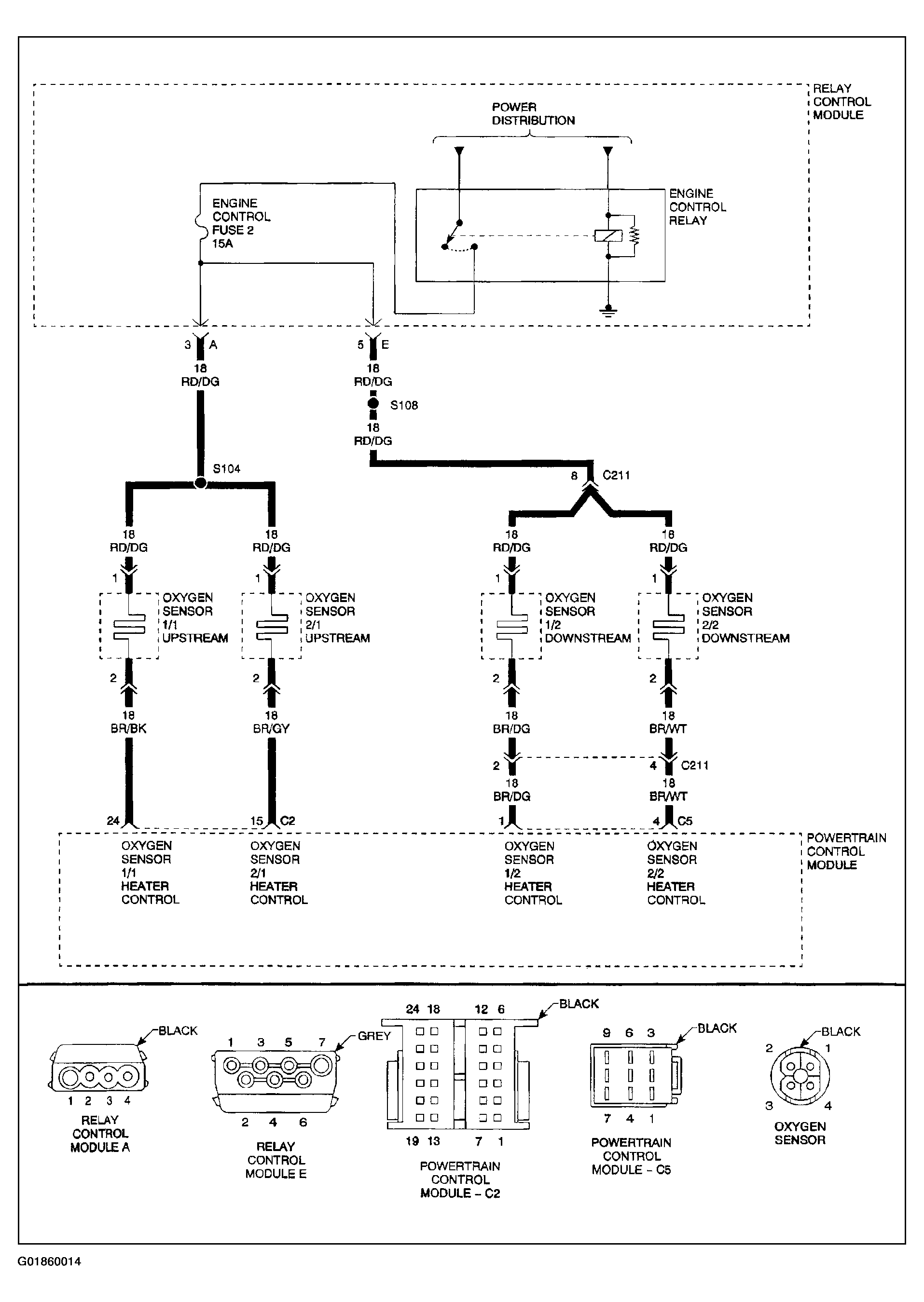

Fig 1: Identifying DTC P0161 Circuit Diagram & Connector Identification

G01860014

Courtesy of DAIMLERCHRYSLER CORP.
