Circuit Diagram & Connector Identification

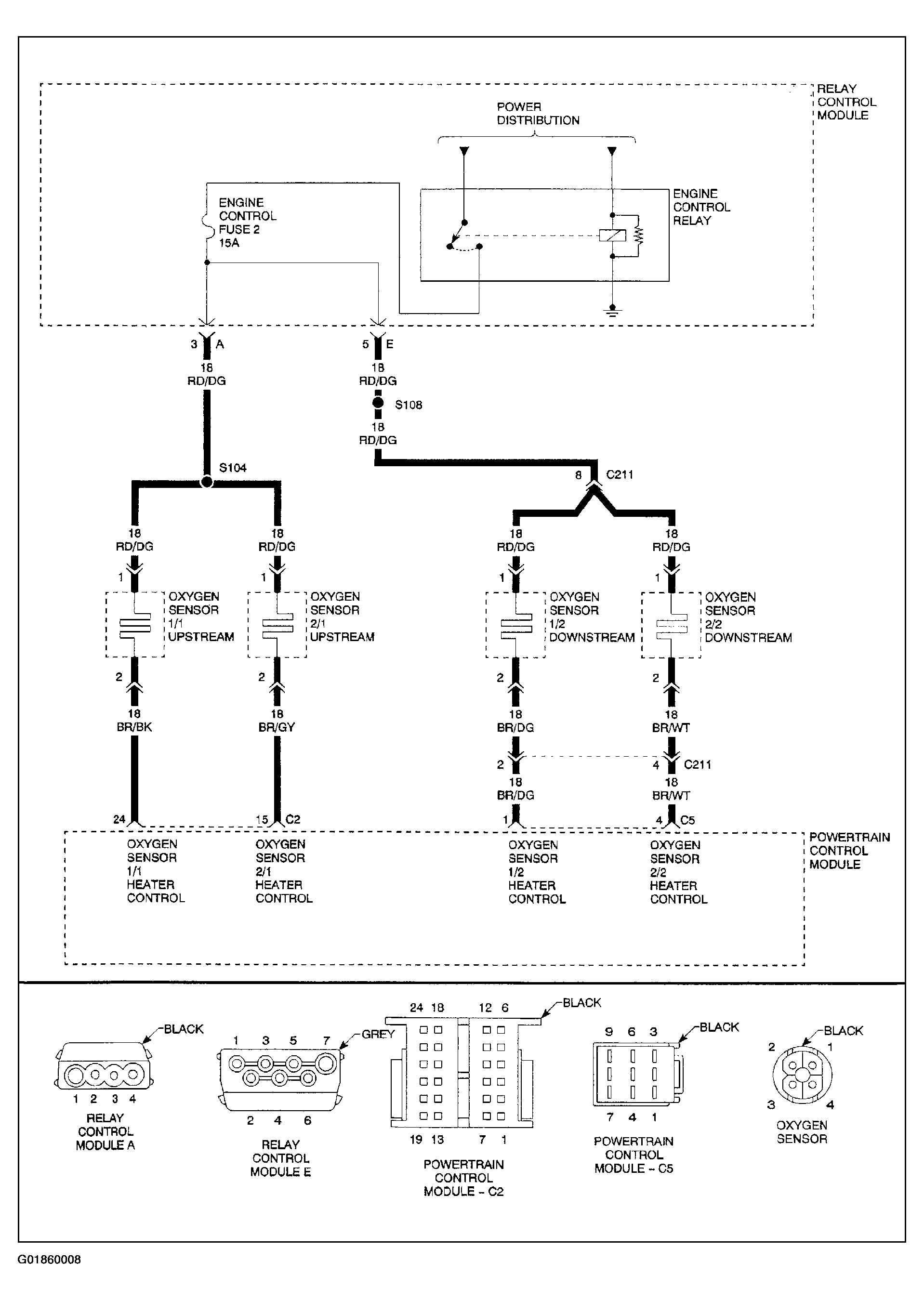

Fig 1: Identifying DTC P0155 Circuit Diagram & Connector Identification

G01860008

Courtesy of DAIMLERCHRYSLER CORP.
