Circuit Diagram & Connector Identification

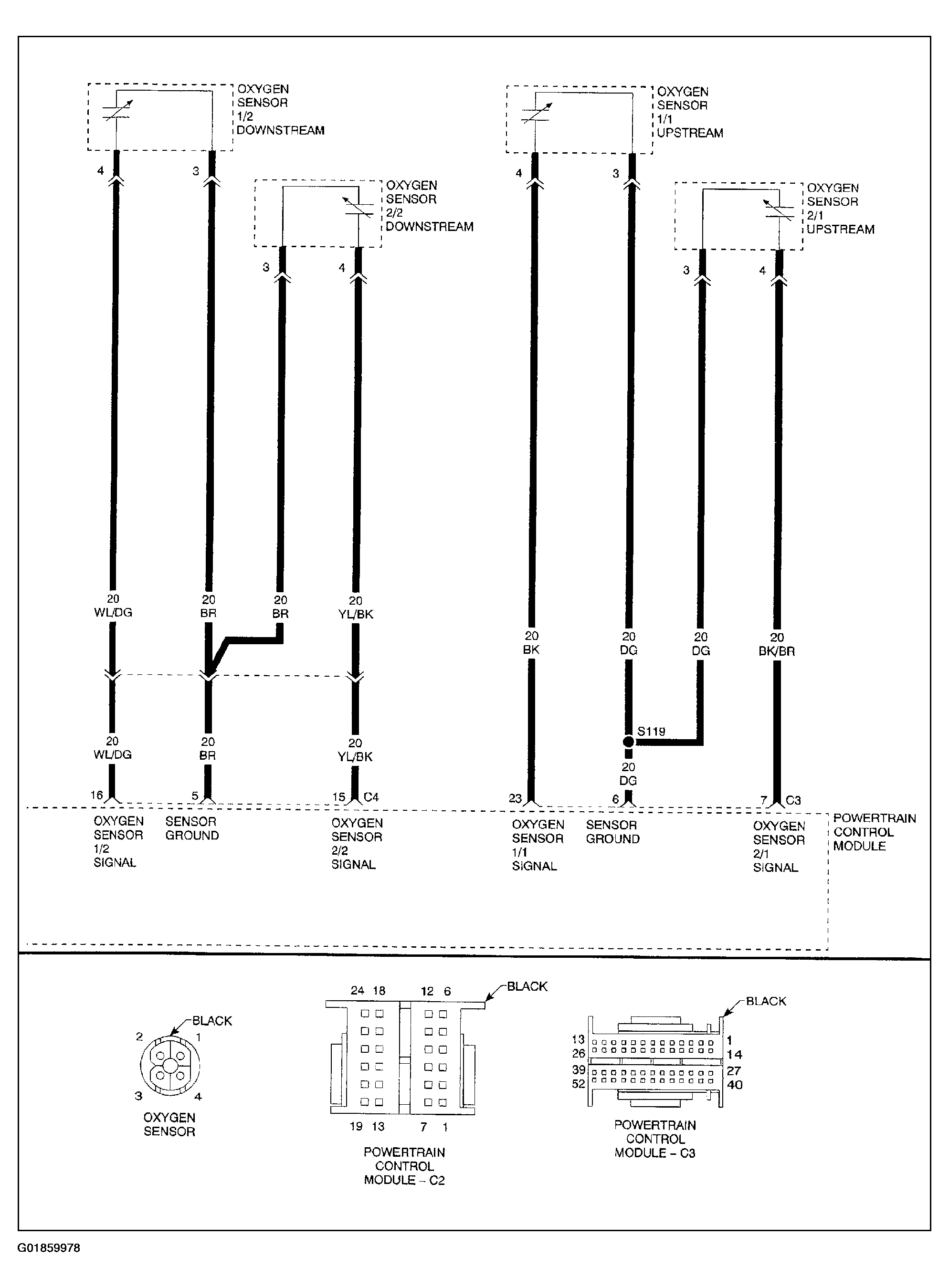

Fig 1: Identifying DTC P0151 Circuit Diagram & Connector Identification

G01859978

Courtesy of DAIMLERCHRYSLER CORP.
