Circuit Diagram & Connector Identification

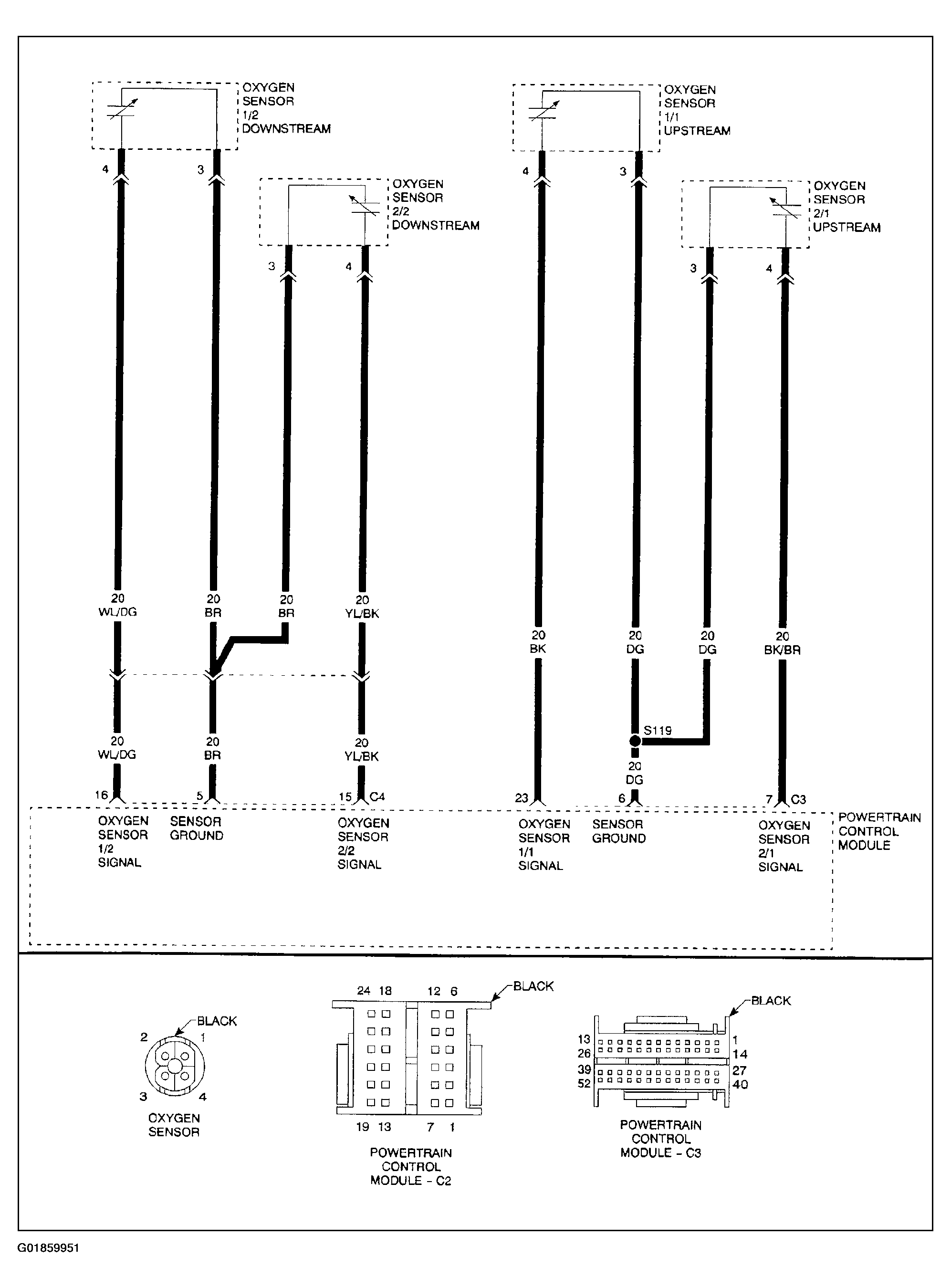

Fig 1: Identifying DTC P0138 Circuit Diagram & Connector Identification

G01859951

Courtesy of DAIMLERCHRYSLER CORP.
