Circuit Diagram & Connector Identification

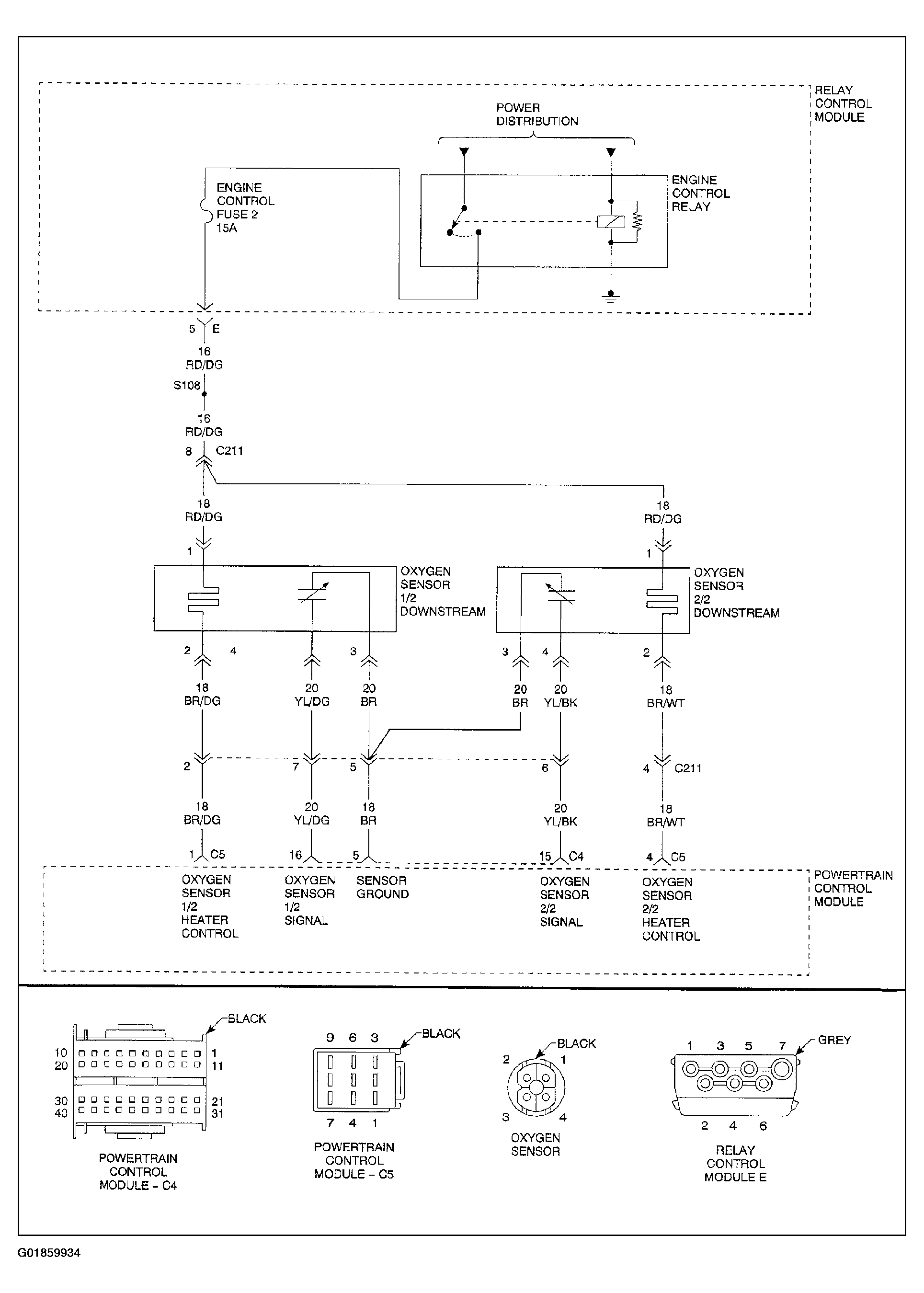

Fig 1: Identifying DTC P0137 Circuit Diagram & Connector Identification

G01859934

Courtesy of DAIMLERCHRYSLER CORP.
