Circuit Diagram & Connector Identification

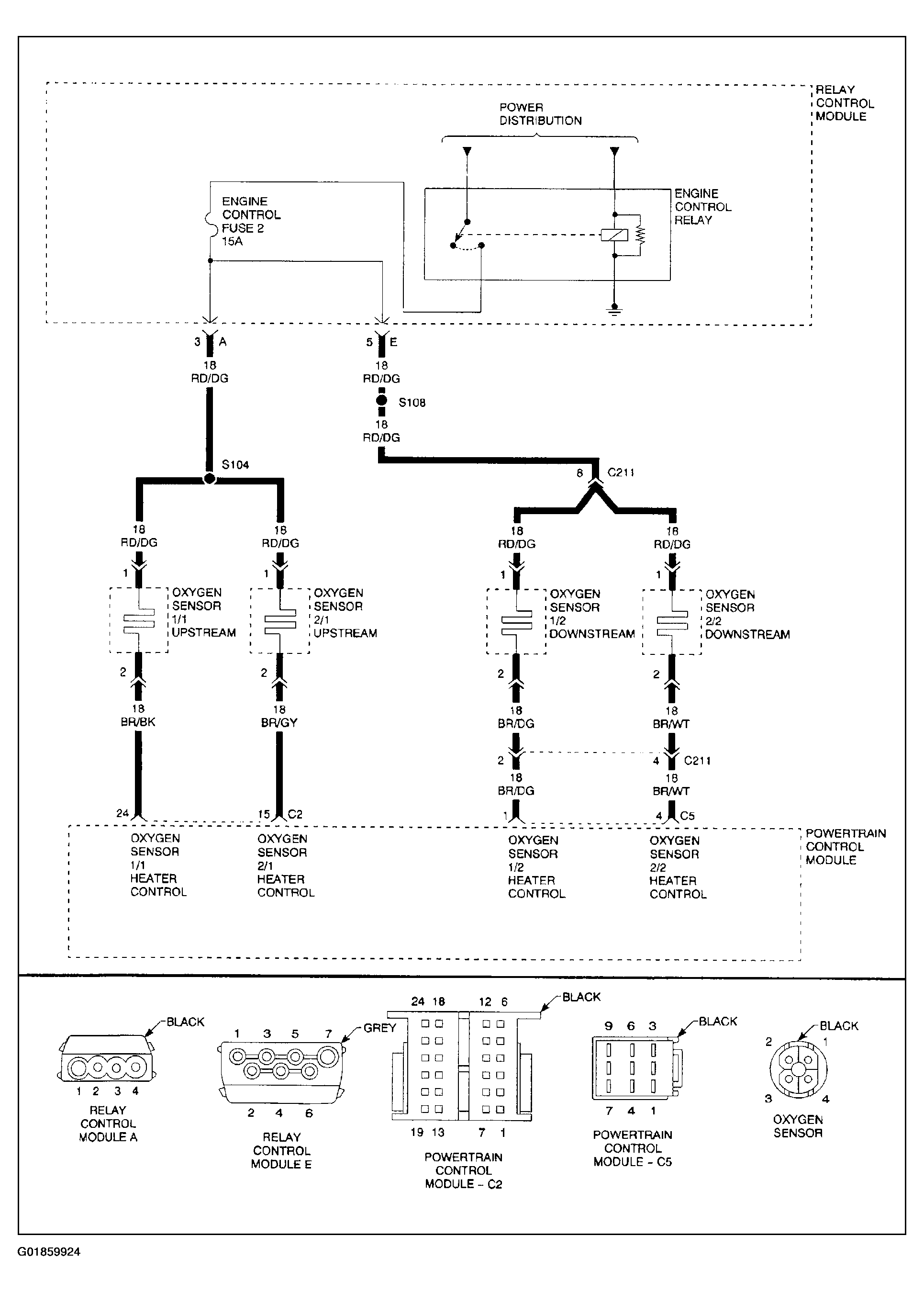

Fig 1: Identifying DTC P0135 Circuit Diagram & Connector Identification

G01859924

Courtesy of DAIMLERCHRYSLER CORP.
