Circuit Diagram & Connector Identification

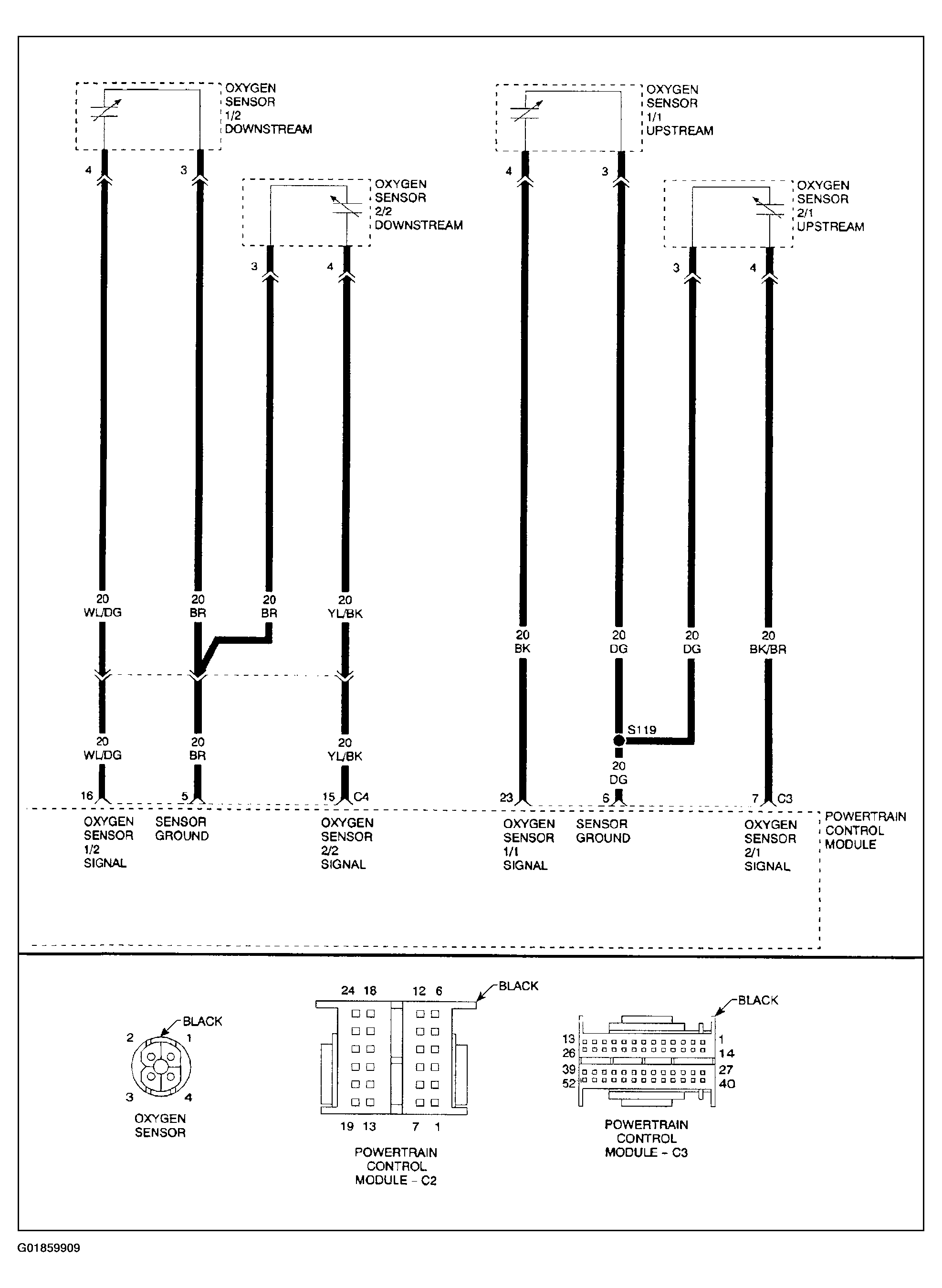

Fig 1: Identifying DTC P0134 Circuit Diagram & Connector Identification

G01859909

Courtesy of DAIMLERCHRYSLER CORP.
