5. Open Apps #1 Ground Circuit

With the ignition off.

Measure the resistance of the APPS #1 Ground circuit from the APPS harness connector to the PCM C4 harness connector.

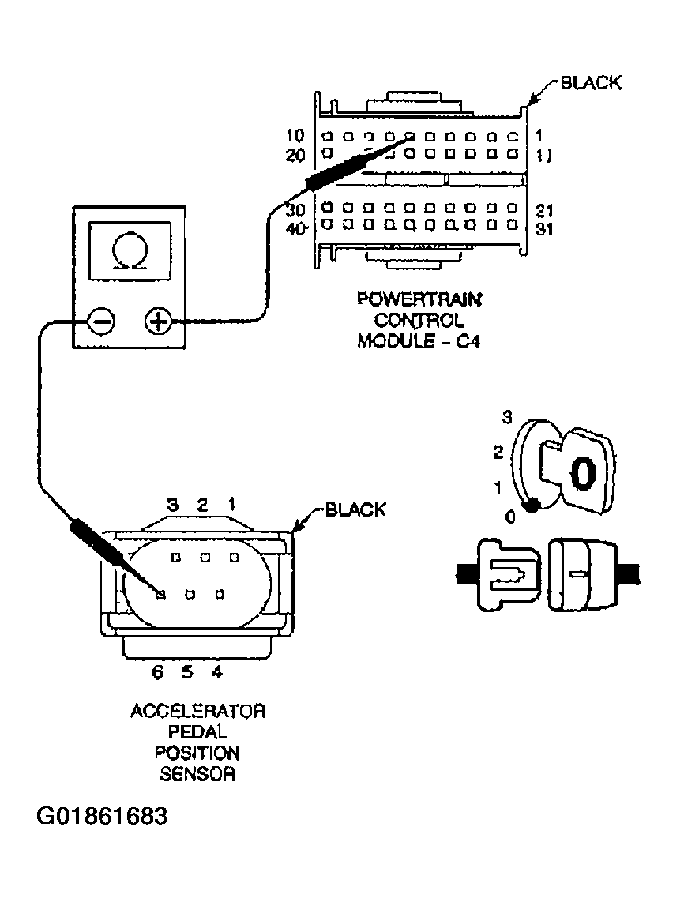

Fig 1: Measuring Resistance Of APPS #1 Ground Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

1. Yes  >> Go To 6
2. No  >> Repair the APPS #1 Ground circuit for an open.

   See POWERTRAIN VERIFICATION TEST - VER 2  .
