5. Apps Signal Circuit Shorted To Ground

With the ignition off.

Measure the resistance between ground and the APPS #1 Signal circuit.

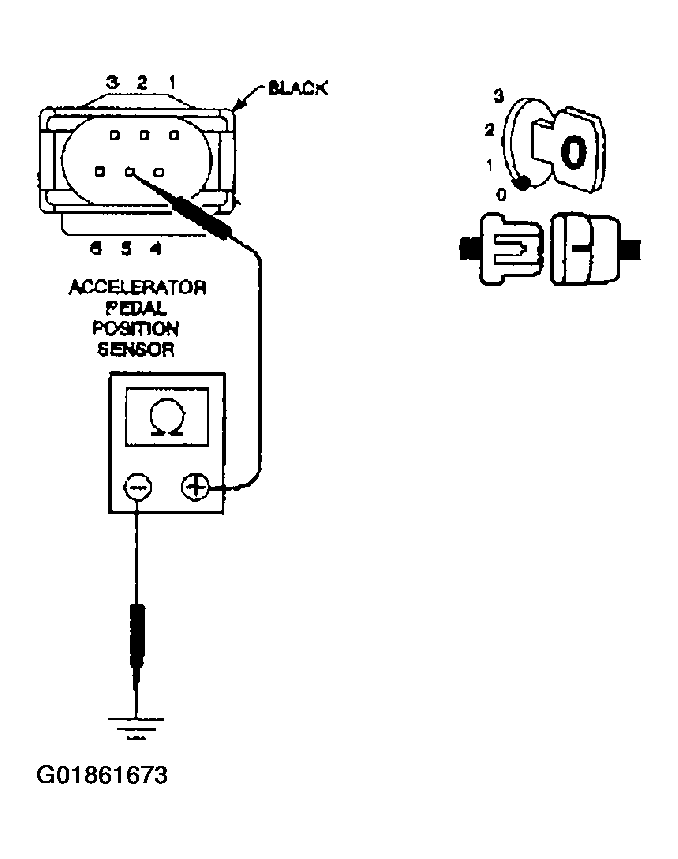

Fig 1: Measuring Resistance Between Ground & APPS #1 Signal Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 100 ohms?

1. Yes  >> Repair the APPS #1 Signal circuit for a short to ground.

   See POWERTRAIN VERIFICATION TEST - VER 2  .

2. No  >> Go To 8
