5. Sensor Ground Circuit Open

Turn the ignition off.

Disconnect PCM harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the Sensor Ground circuit.

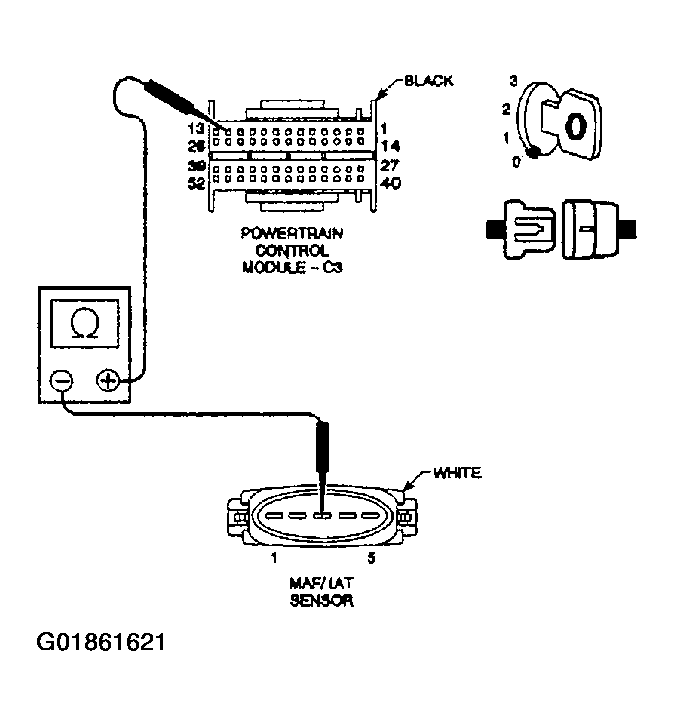

Fig 1: Measuring Resistance Of Sensor Ground Circuit
G01861621Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Replace and program the Powertrain Control Module. See ELECTRONIC CONTROL MODULES article.

    See POWERTRAIN VERIFICATION TEST - VER 2  .

  2. No  >> Repair the Sensor Ground circuit for an open.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
