Circuit Diagram & Connector Identification

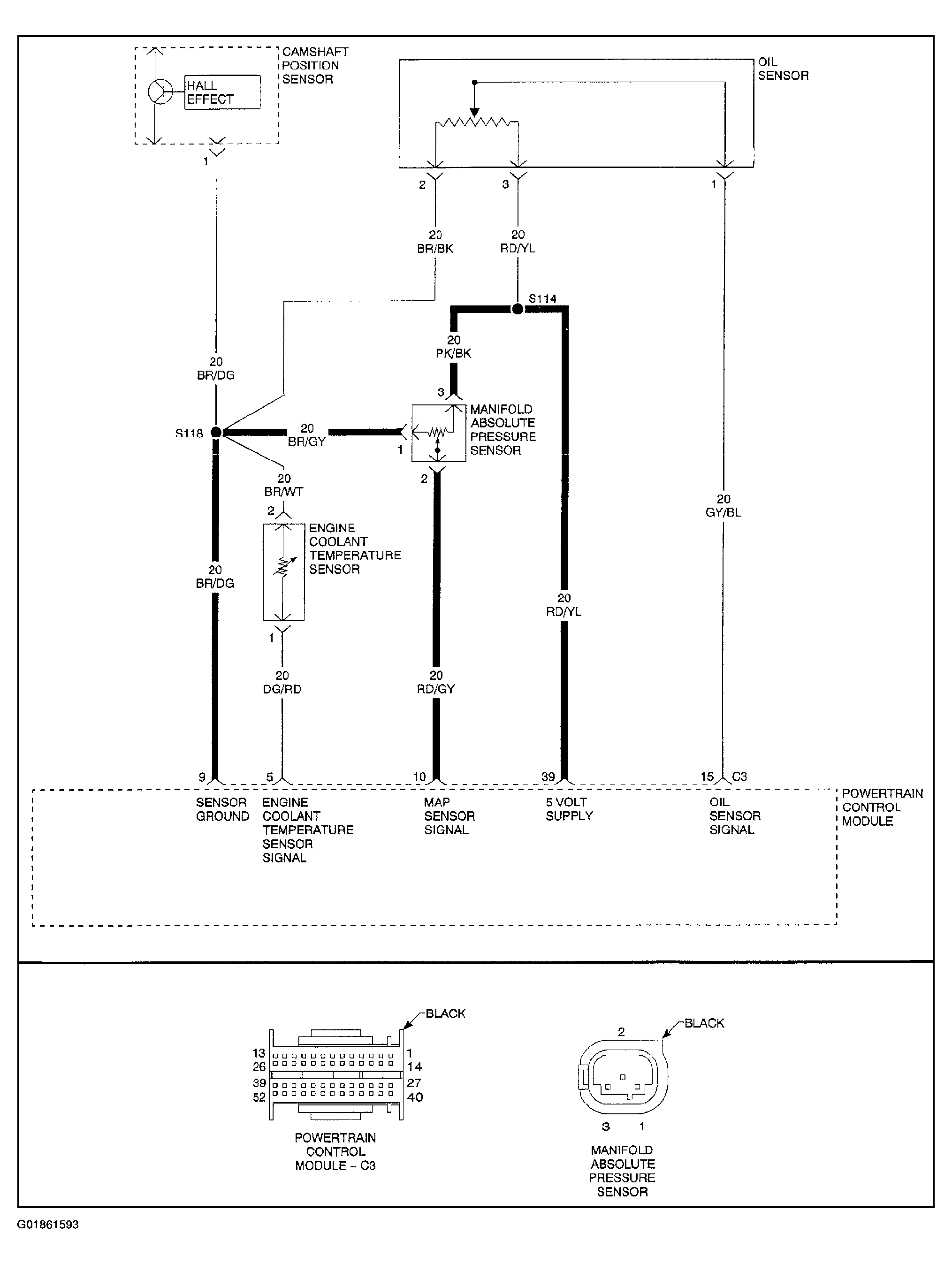

Fig 1: Identifying DTC P0107 Circuit Diagram & Connector Identification

G01861593

Courtesy of DAIMLERCHRYSLER CORP.
