Circuit Diagram & Connector Identification

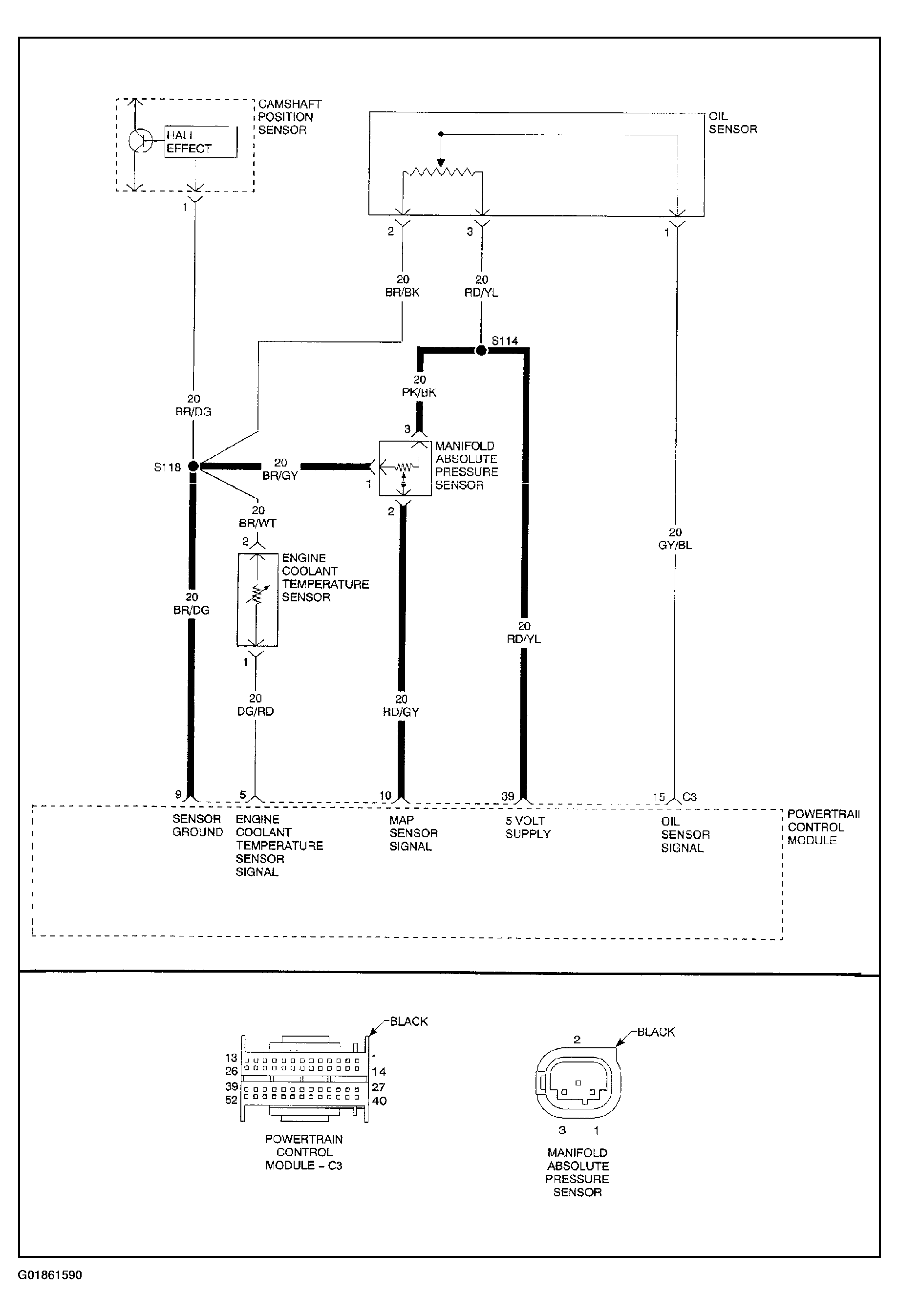

Fig 1: Identifying DTC P0106 Circuit Diagram & Connector Identification

G01861590

Courtesy of DAIMLERCHRYSLER CORP.
