Circuit Diagram & Connector Identification

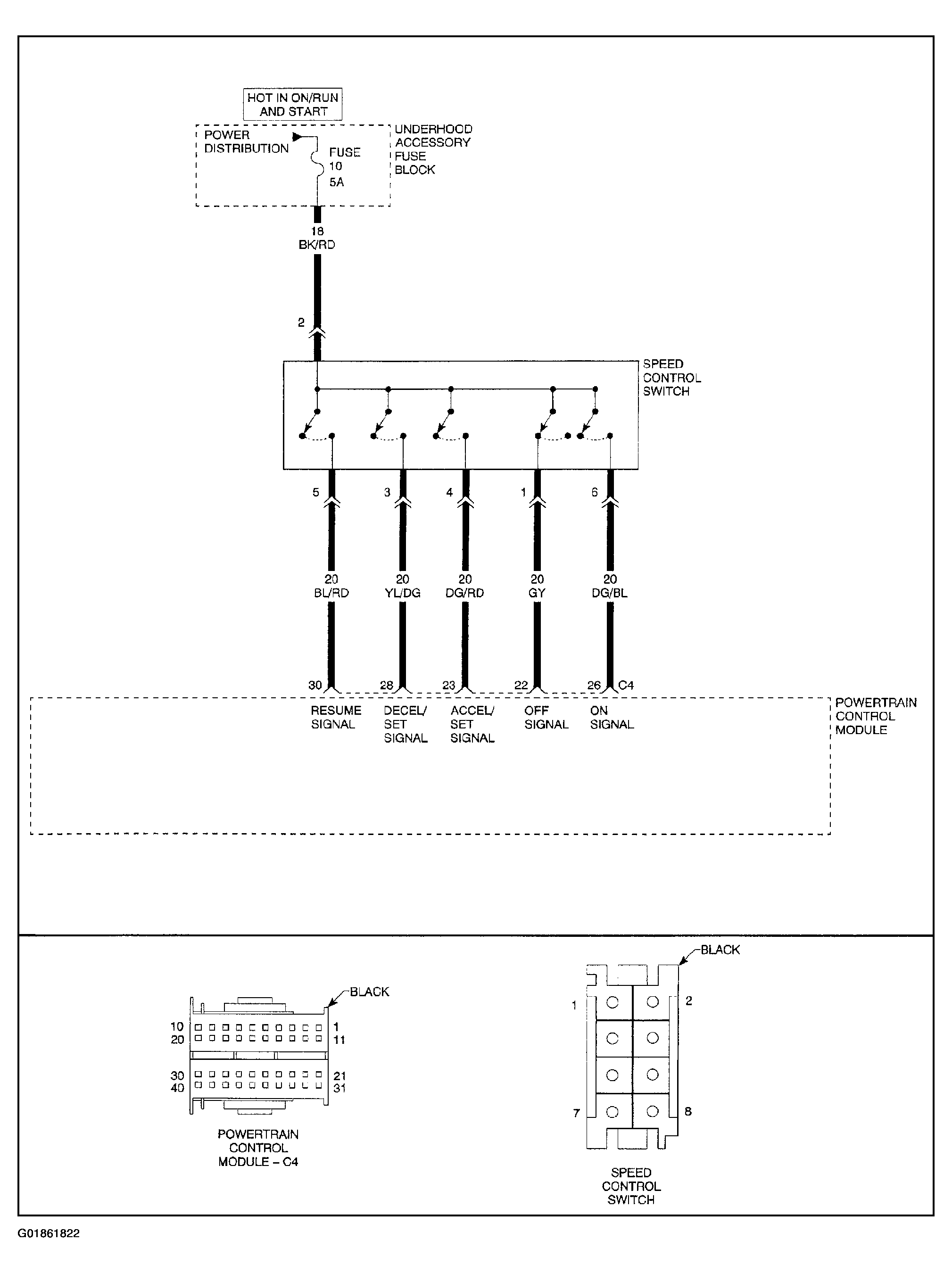

Fig 1: Identifying Speed Control Switch Input Circuit Diagram & Connector Identification

G01861822

Courtesy of DAIMLERCHRYSLER CORP.
