5. Throttle Control Motor 2 Circuit Open

With the ignition off.

Measure the resistance of the Throttle Control Motor 2 circuit from the Throttle Body harness connector to the PCM C1 harness connector.

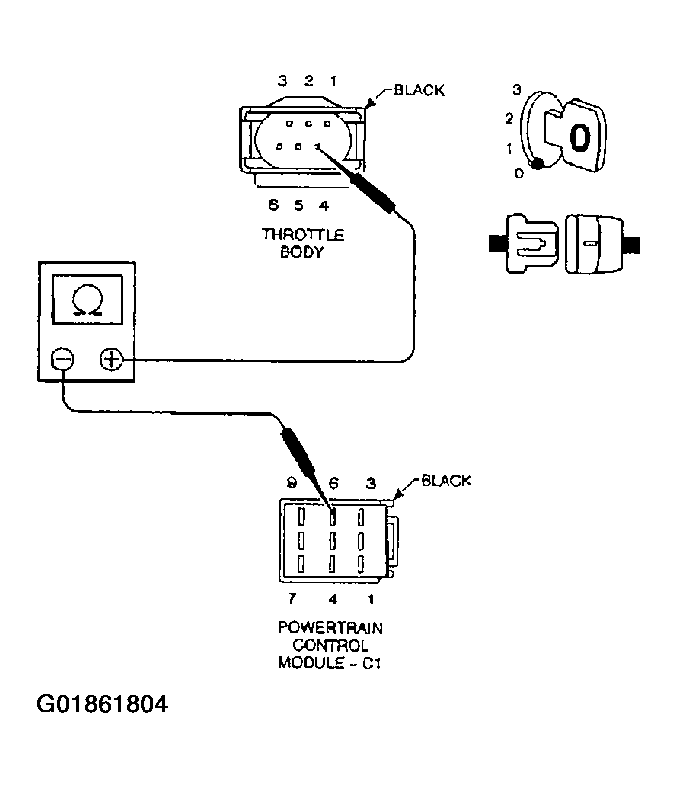

Fig 1: Measuring Resistance Of Throttle Control Motor 2 Circuit
G01861804Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 6
  2. No  >> Repair the Throttle Control Motor 2 circuit for an open.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
